PRTB50-1D

Archive model

This product is no longer available for purchase.

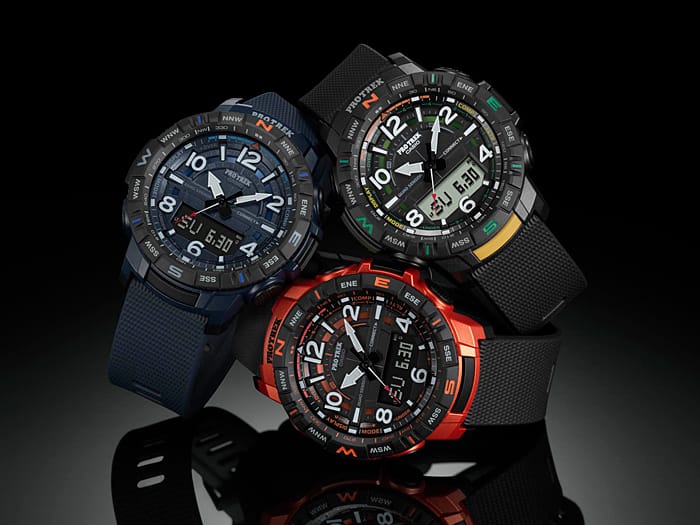

A model from PROTREK that improves outdoor usability by linking to the dedicated "CASIO WATCHES" app via Bluetooth®.

Realises a quad sensor able to measure number of steps, direction, altitude/barometric pressure, and temperature. Records calories burned, altitudes acquired by the watch, and routes acquired via smartphone GPS in the app.

Automatic time adjustment is made possible worldwide via simplification of various settings. It is also able to automatically correct the altimeter and calculate sunrise and sunset times. Also makes it possible to turn modes on/off, and to enjoy customisation by switching the displays on the app.

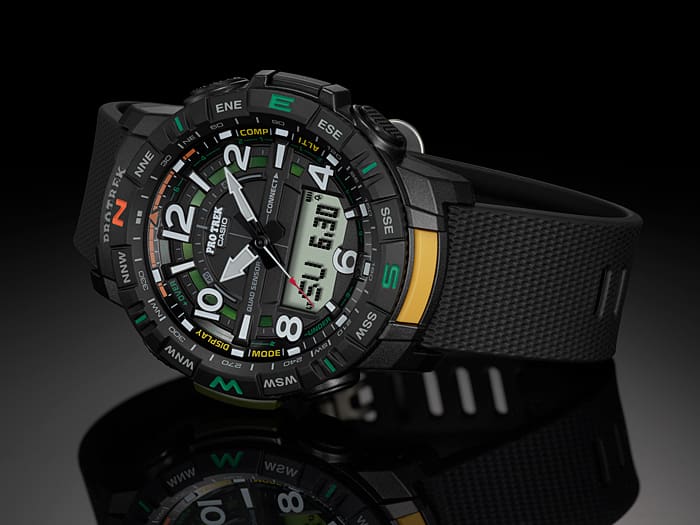

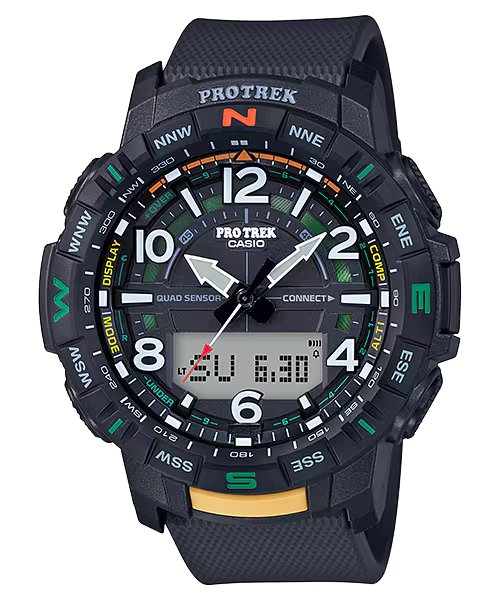

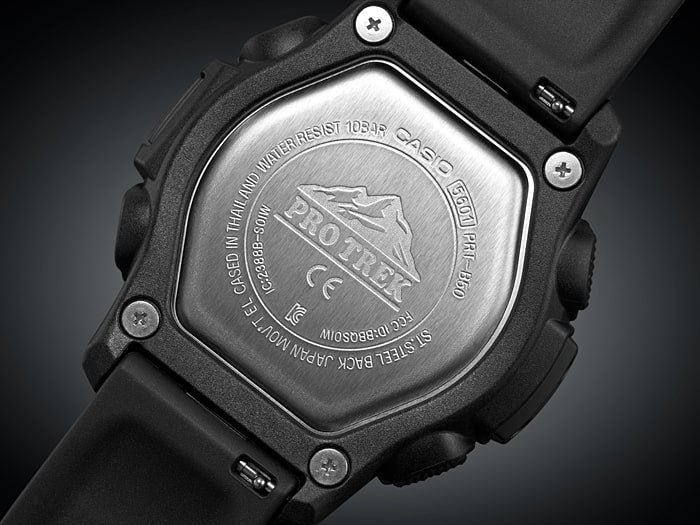

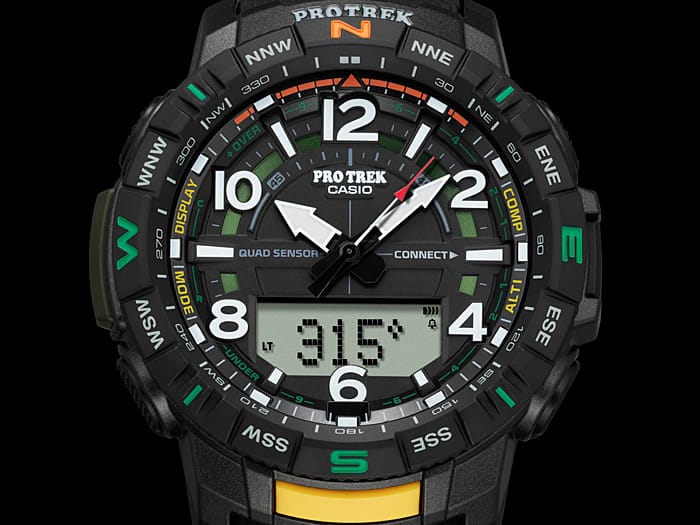

The fine resin back cover uses a structure that integrates with the lugs. Both the button guard and case have been made more robust. The wide dial uses Arabic indices to ensure high visibility.

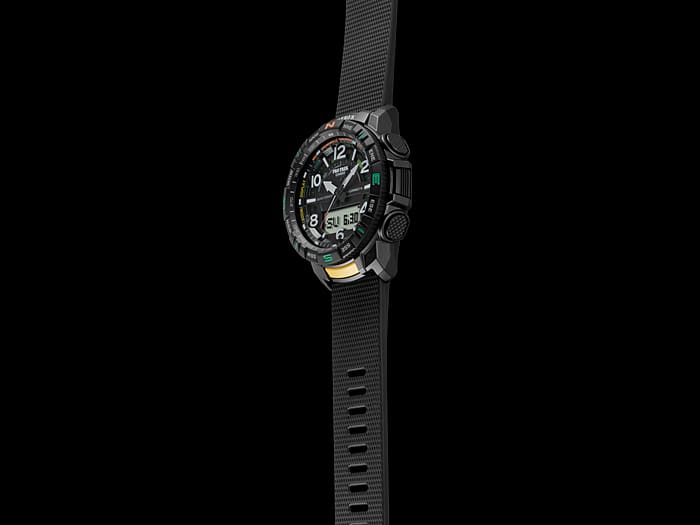

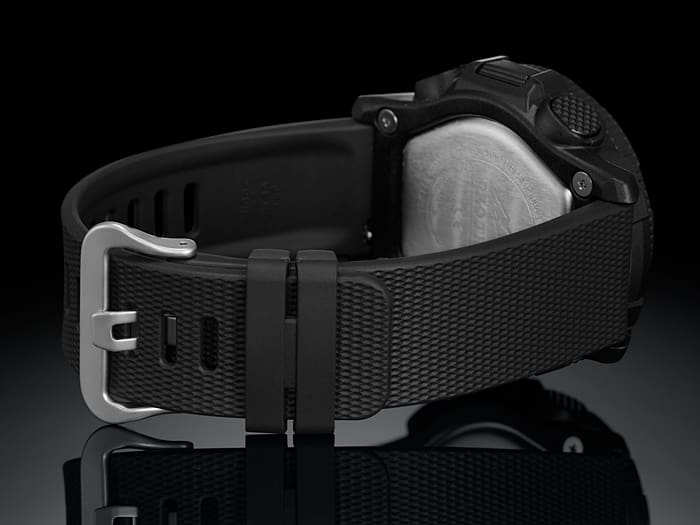

Metal parts are used for the bearing indicator, and colours reminiscent of the outdoors are used as accents. Additionally, the entire surface of the urethane band has been given a 3D texture to prevent the band keeper from slipping, which improves usability in outdoor scenarios.

Basic Information

  • Band
    Resin Band
  • Case and bezel material
    Resin
  • Case size (L × W × H)
    57.5 × 50.8 × 15.8 mm
  • Environmental resistance
    Low-temperature resistant (-10℃/14℉)
  • Power supply and battery life
    Approx. battery life: 2 years on CR2025
  • Sensor feature

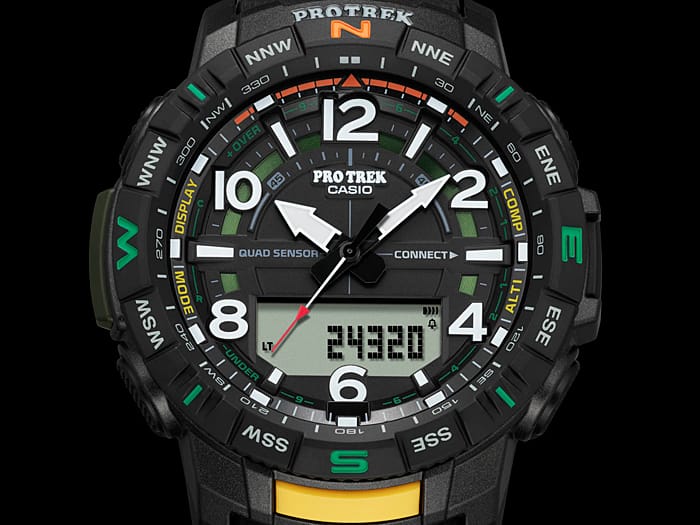

    Step count using a 3-axis acceleration sensor: 0 to 999,999 step count display range
    Power Saving: Auto sensor sleep state entry after fixed period of non-activity
  • Time adjustment
    Bluetooth: Connects to a smartphone and automatically adjusts the time
  • Water resistance
    100-metre water resistance
  • Weight
    64 g

Exterior

  • Bezel features
    Direction Bezel
  • Compatible band size
    145 to 215 mm
  • Glass
    Mineral Glass

Smartphone Link / App Connectivity Features

  • App connectivity feature
    Auto time adjustment, Easy watch setting, Approximately 300 world time cities, Life log data, Location Indicator, Location Memory, Route log, Mode/Display switching customization, Auto altitude correction, Phone finder
  • Apps
    CASIO WATCHES
  • Smartphone link feature
    Mobile link (Wireless linking using Bluetooth®)

Features

  • Accuracy
    Accuracy: ±15 seconds per month (with no mobile link function)
  • Alarm / hourly time signal
    5 daily alarms
    Hourly time signal
  • Calendar
    Full auto-calendar (to year 2099)

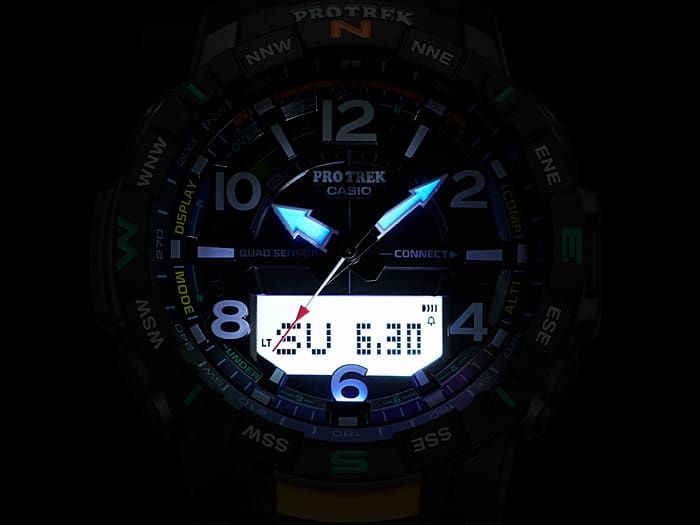

  • Light
    Double LED light
    LED light for the face (Auto LED light, Neon illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
    LED backlight for the digital display (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
  • Mute feature
    Button operation tone on/off
  • Other features
    12/24-hour format
    Hand shift feature
    Regular timekeeping:
    Analog: 3 hands (hour, minute (hand moves every 10 seconds), second)
    Digital: Hour, minute, second, am/pm, month, date, day
  • Stopwatch
    1/100-second stopwatch
    00'00''00~59'59''99 (for the first 60 minutes)
    1:00'00~23:59'59 (after 60 minutes)
    Measuring unit:
    1/100 second (for the first 60 minutes)
    1 second (after 60 minutes)
    Measuring modes: Elapsed time, split time, 1st-2nd place times
  • Sunrise / sunset display
    Sunrise, sunset time display
    Sunrise time and sunset time for specific date
  • Timer
    Countdown timer
    Measuring unit: 1 second
    Countdown range: 24 hours
    Countdown start time setting range: 1 second to 24 hours (1-minute increments and 1-hour increments)
  • World time
    World time
    38 time zones (38 cities + coordinated universal time), daylight saving on/off, Home city/World time city swapping

Feature List

  • Black icon of a hiker with a backpack and trekking pole climbing a mountain peak.

    Great for climbing

  • Black and white icon of a smartphone syncing time with an analog wristwatch via a wireless connection.

    Easy to operate via smartphone

  • Black icon of a snorkeler swimming horizontally next to the number 10, indicating a 10-bar water resistance rating.

    10 bar water resistant

  • Black icon of a hiker with a backpack and walking stick next to a north-pointing compass symbol.

    Lets you know your direction

  • Minimalist black icon featuring a jagged mountain silhouette below a simple line graph on a white background.

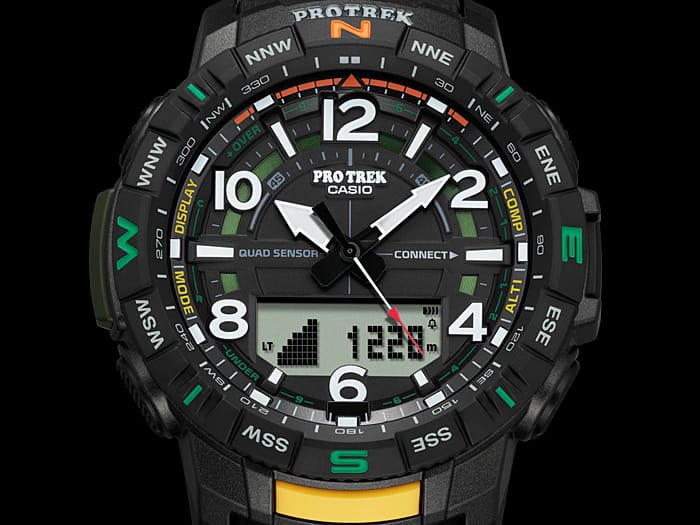

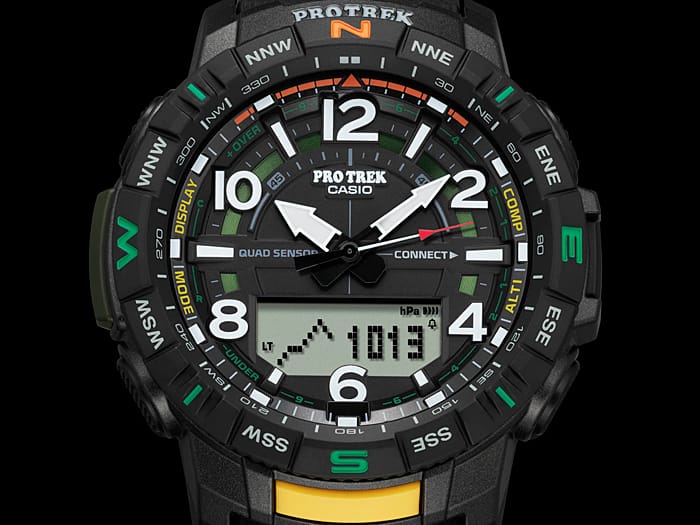

    Lets you know the barometric pressure and altitude

  • Black icon of a person walking next to a thermometer, representing temperature and physical activity.

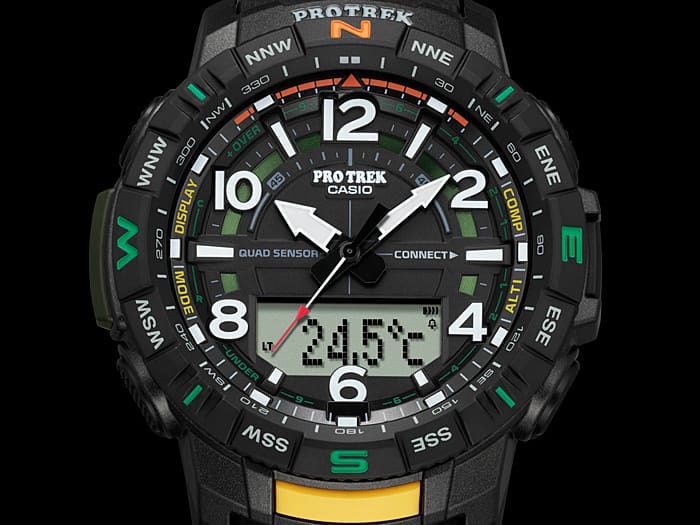

    Lets you know the temperature
