G-SHOCK

GMWB5000D-2D

Name: GMWB5000D-2D
Brand: G-SHOCK
SKU: GMWB5000D-2D
Price: 1199.00 AUD
Availability: OutOfStock

$1,199.00

Size Chart

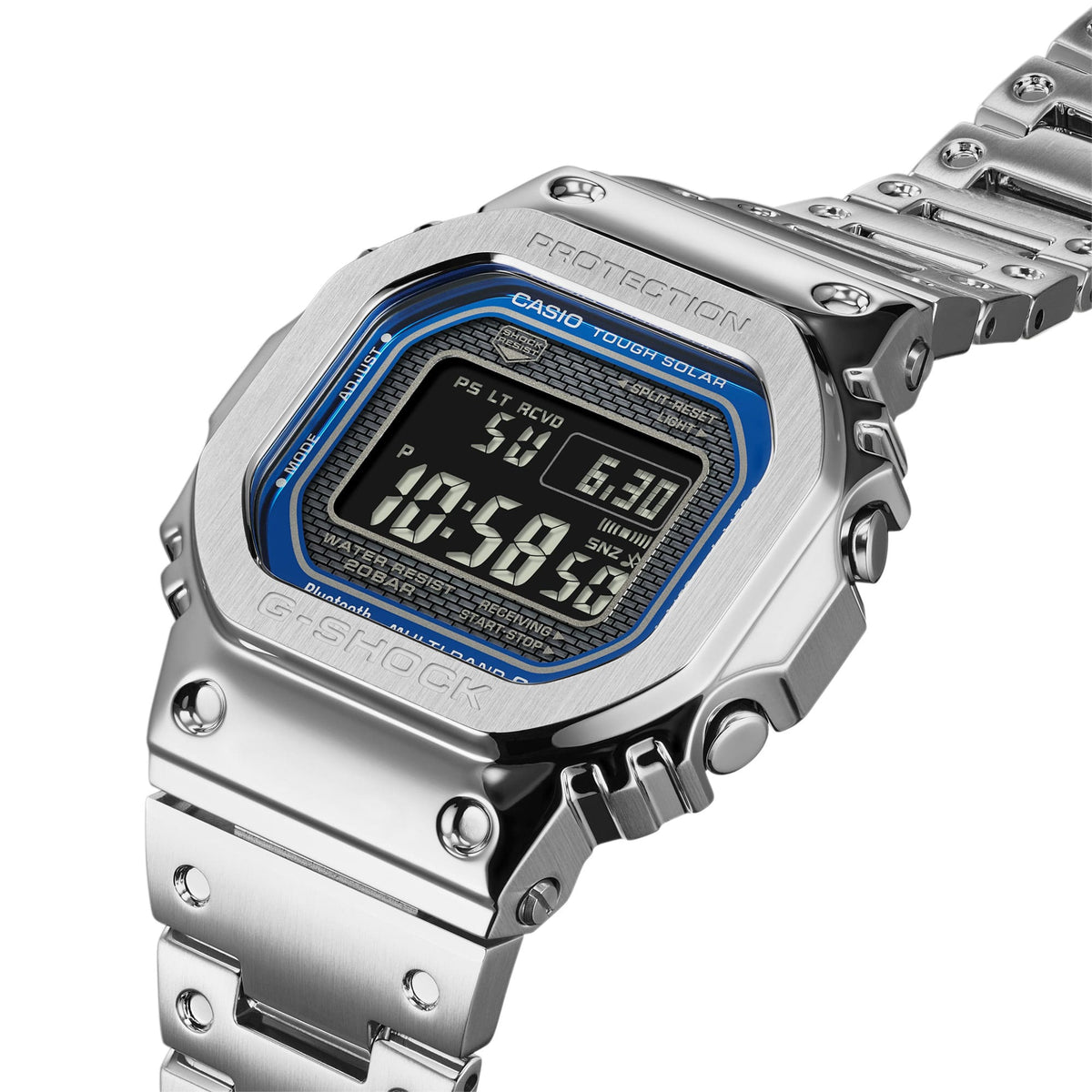

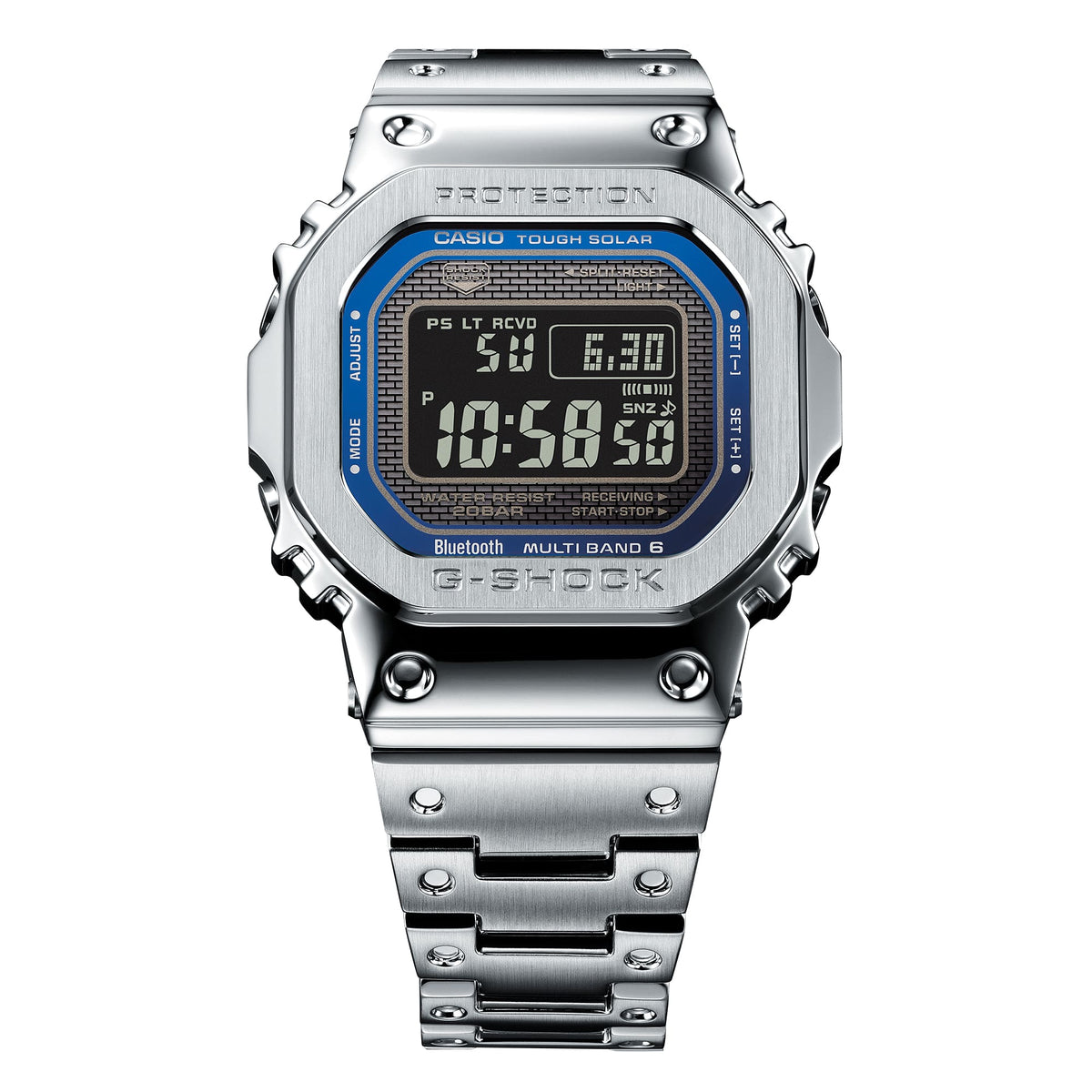

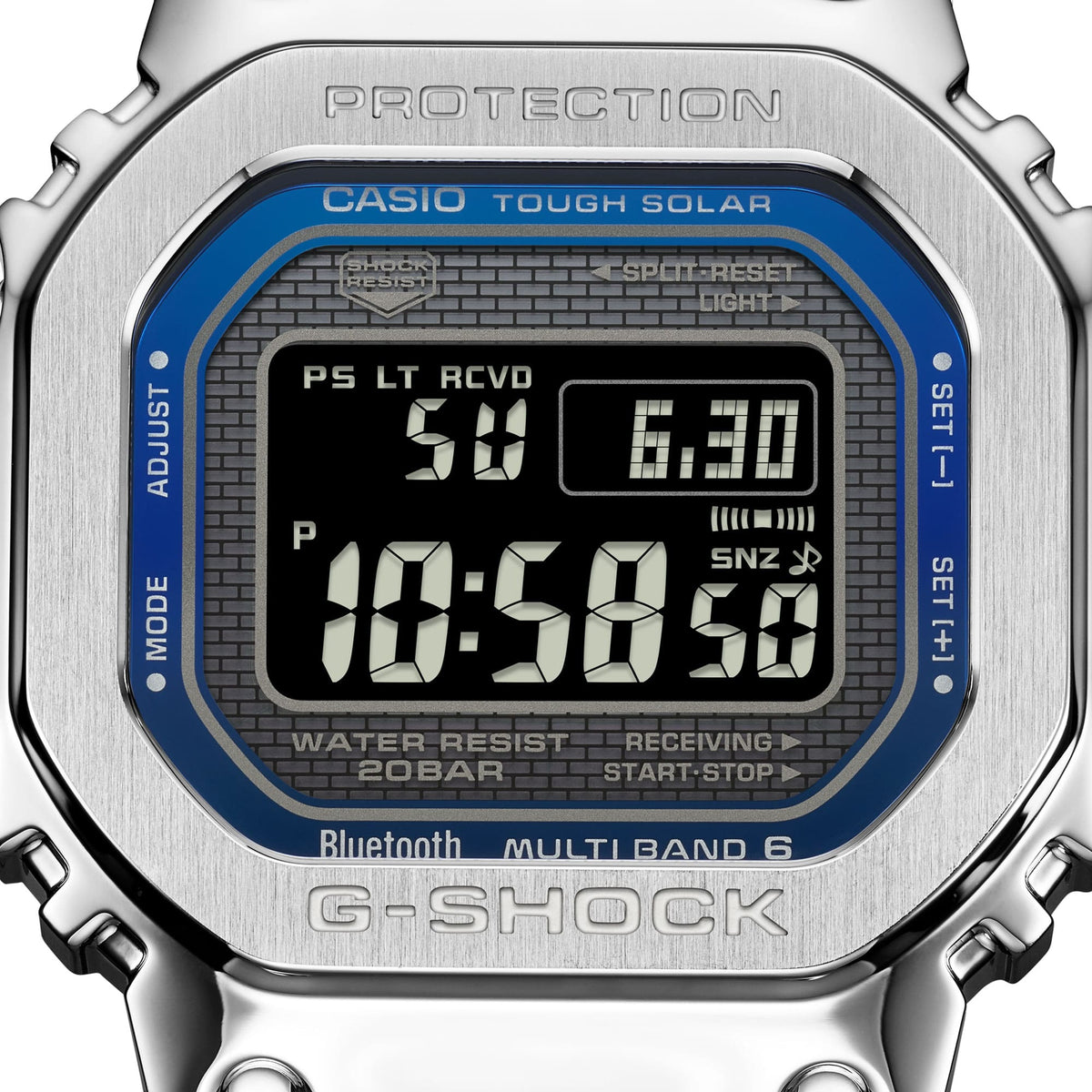

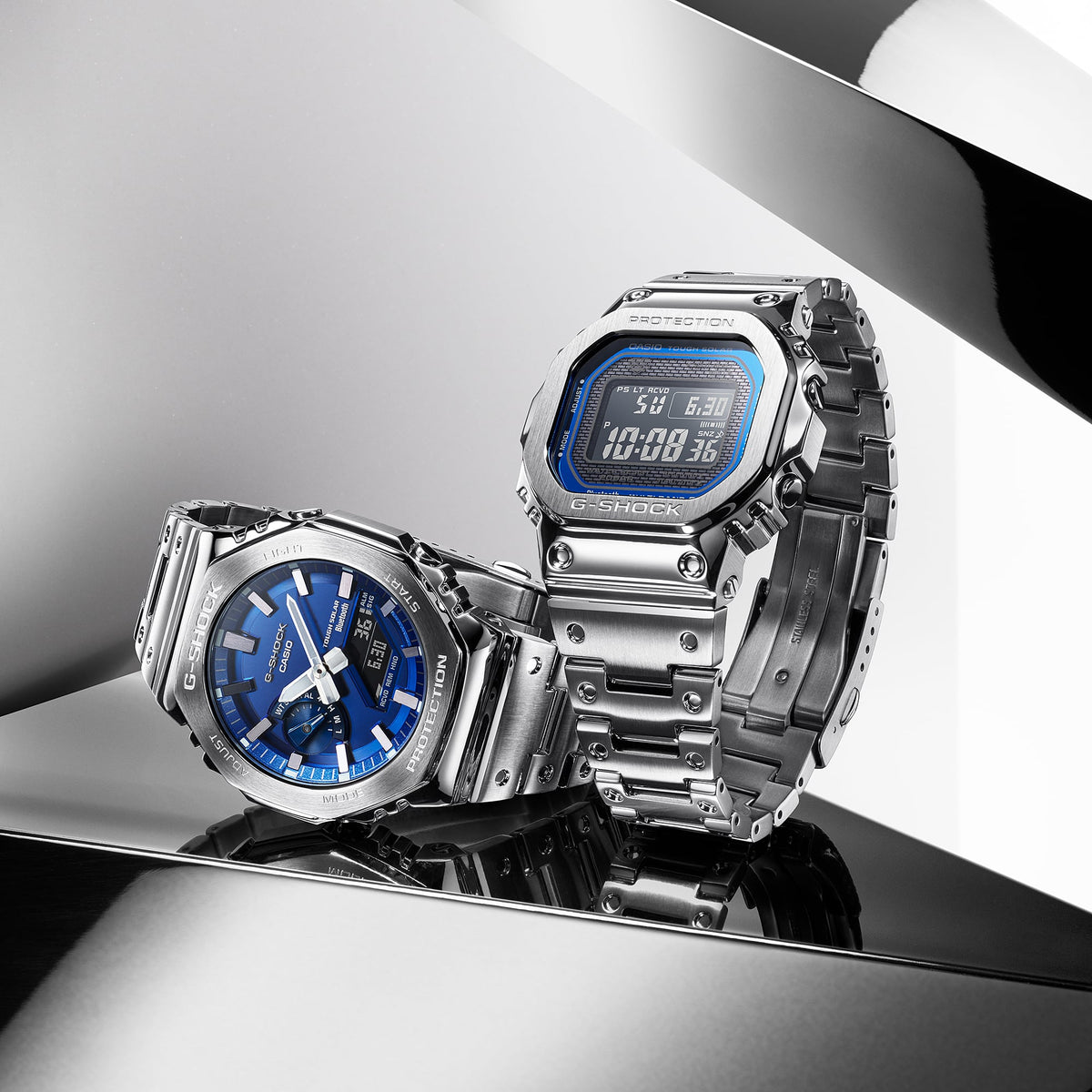

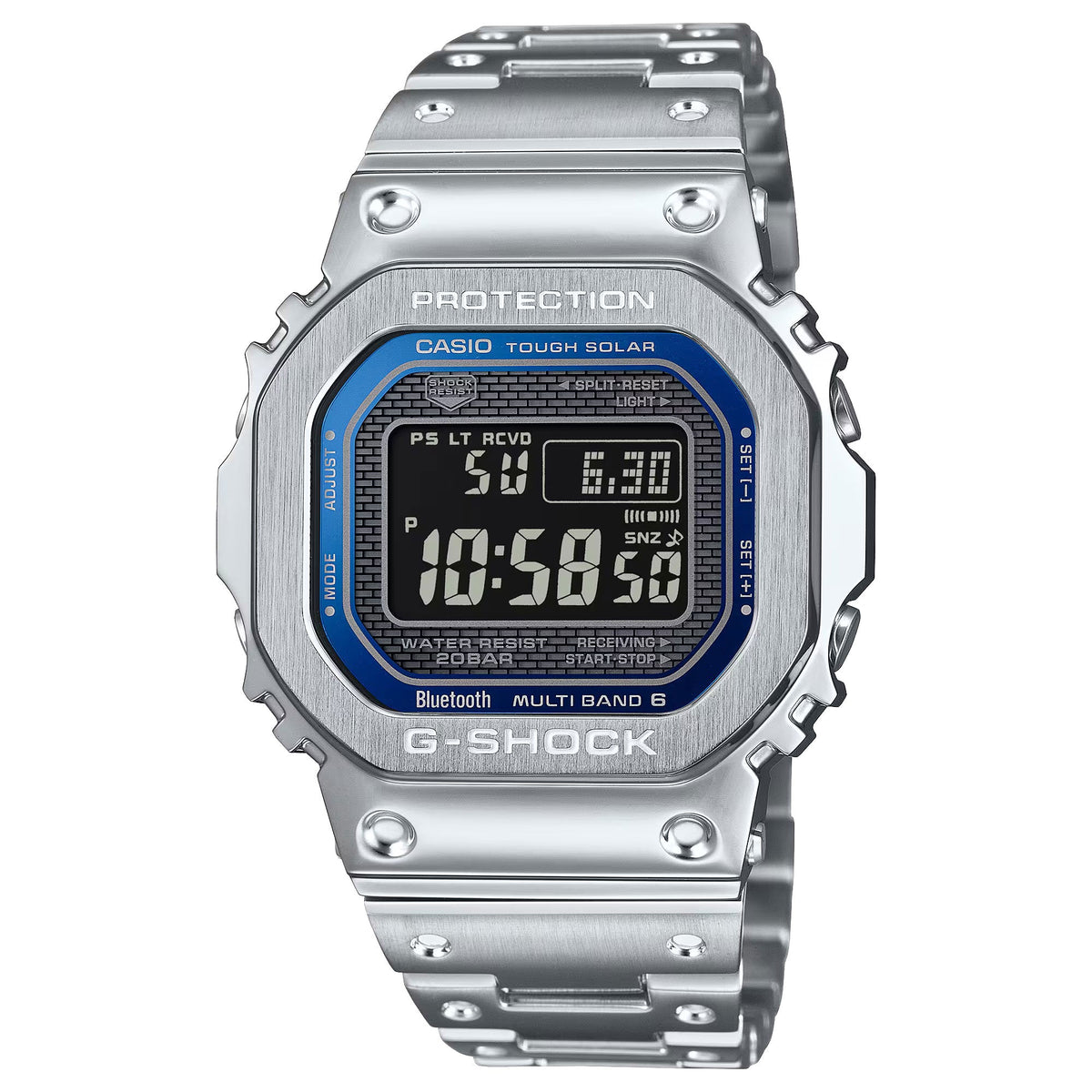

Add a touch of colour to your classic style — a full-metal G-SHOCK with vibrant blue dial accent. The watch face is outlined in metallic blue vapour deposition, adding a striking touch of originality to the iconic stainless-steel bezel and band design. Buffering components made of fine resin are installed between the bezel and case, with a three-pronged structure dispersing shocks to the band’s connecting pipes, to deliver all the shock resistance of a G-SHOCK in a full-metal timepiece. And the case back features a screw-lock construction to ensure a tight seal. The metal band pieces are dimpled to reproduce the look of the resin band design of the very first G-SHOCK. The stainless-steel bezel is meticulously forged, cut, and polished for stunning depth and dimension. A hairline finish is applied to the bezel top and a mirror finish to the beveled edges, creating a smart metal timepiece that truly shines.

Basic Information

Band

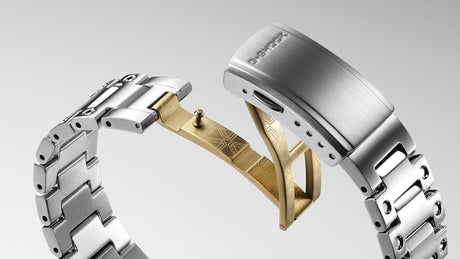

Stainless Steel Band, Solid Band, One-touch 3-fold Clasp
Case and bezel material

Stainless Steel
Construction

Shock Resistant
Power supply and battery life

Tough Solar (Solar powered)
Time adjustment

Radio-controlled Watch; Multi band 6, Bluetooth: Connects to a smartphone and automatically adjusts the time
Water resistance

200-metre water resistance
Weight

167 g

Exterior

Back plate

Screw Lock Back
Compatible band size

150 to 205 mm
Glass

Mineral Glass

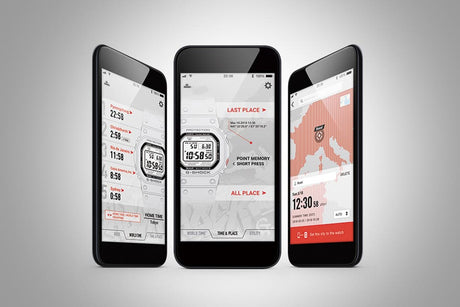

Smartphone Link / App Connectivity Features

App connectivity feature

Auto time adjustment, Easy watch setting, Approximately 300 world time cities + user-added point, Time & place, Reminder, Phone finder
Apps

CASIO WATCHES
Smartphone link feature

Mobile link (Wireless linking using Bluetooth®)

Features

Accuracy

Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
Alarm / hourly time signal

5 daily alarms (with 1 snooze alarm)
Hourly time signal
Battery display alert

Low battery alert
Calendar

Full auto-calendar (to year 2099)
Energy saving feature

Power Saving (display goes blank to save power when the watch is left in the dark)

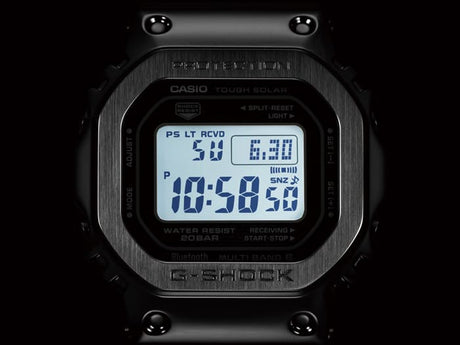

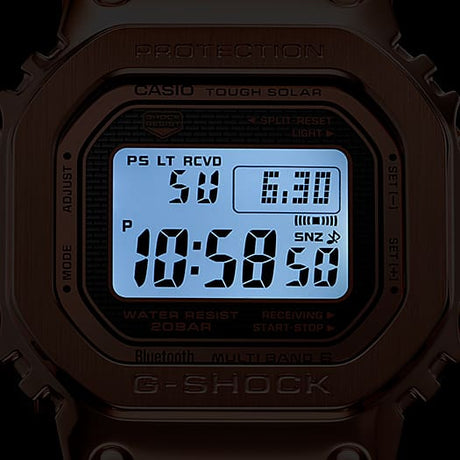

Light

LED backlight (Super illuminator)
Full auto LED light, selectable illumination duration (2 seconds or 4 seconds), afterglow
Mute feature

Button operation tone on/off
Other features

12/24-hour format
Date/month display swapping
Day display (days of the week selectable in six languages)
Regular timekeeping:
Hour, minute, second, pm, month, date, day
Run time

Approx. battery operating time:
10 months on rechargeable battery (operation period with normal use without exposure to light after charge)
22 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Stopwatch

1/100-second stopwatch
Measuring capacity: 00'00''00~59'59''99 (for the first 60 minutes)
1:00'00~23:59'59 (after 60 minutes)
Measuring unit: 1/100 second (for the first 60 minutes)
1 second (after 60 minutes)
Measuring modes: Elapsed time, split time, 1st-2nd place times
Time adjustment details

Time Calibration Signals
Station name: DCF77 (Mainflingen, Germany)
Frequency: 77.5 kHz
Station name: MSF (Anthorn, England)
Frequency: 60.0 kHz
Station name: WWVB (Fort Collins, United States)
Frequency: 60.0 kHz
Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
Station name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
Timer

Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-second increments, 1-minute increments and 1-hour increments)
World time

5 World time
39 time zones (39 cities +coordinated universal time), auto summer time (DST) switching, home city/world time city swapping

User Manual – Module 3539

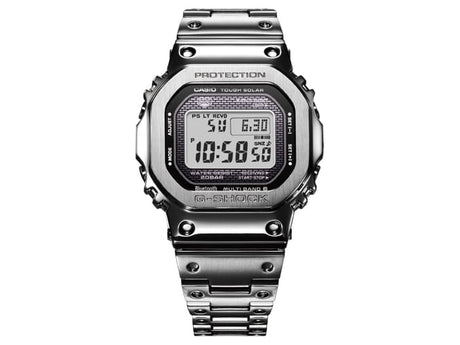

Square case with full-metal shock-resistant structure

Achieved through systematic evolution from one stage to the next. The first G-SHOCK model DW-5000C was born in 1983.

Its symbolic square design is reinvented with a full-metal shock-resistant structure and the latest advanced functions, including Smartphone Link.

The only truly tough watch continues to challenge greater heights.

Shock resistance achieved with a full-metal case

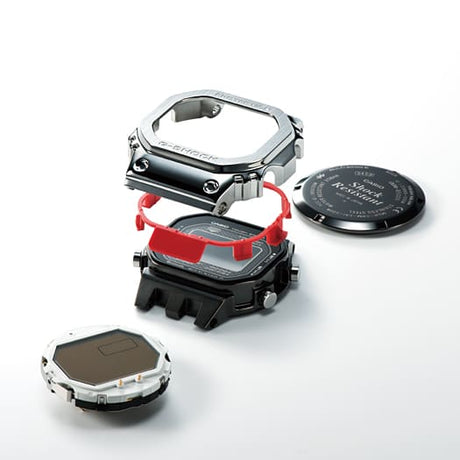

The new shock-resistant structure

Fine-resin cushioning parts are inserted between the bezel case and the inner case. Besides achieving a highly accurate fit, this structure responds with reactive force to ease shocks when tiny protrusions in the cushioning material are compressed.

Fortification of moving parts

Band connection structure

The double-lug structure conventionally used to connect the band to the case has been redesigned to create a three-pronged lug structure. Shocks to the connecting pipes and button shafts are dispersed, and the band attachment is reinforced.

Protecting the button shafts from shocks

Button structure

The specially developed button structure combines large cylindrical forged buttons with internal pipes that guard the vulnerable button shafts from the inside against lateral shocks.

Increased airtightness specifications

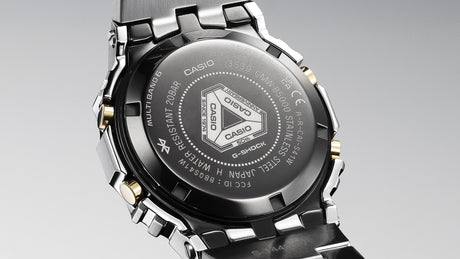

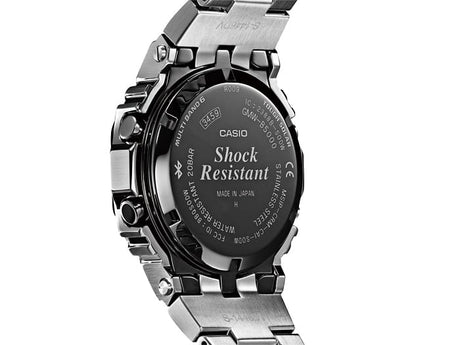

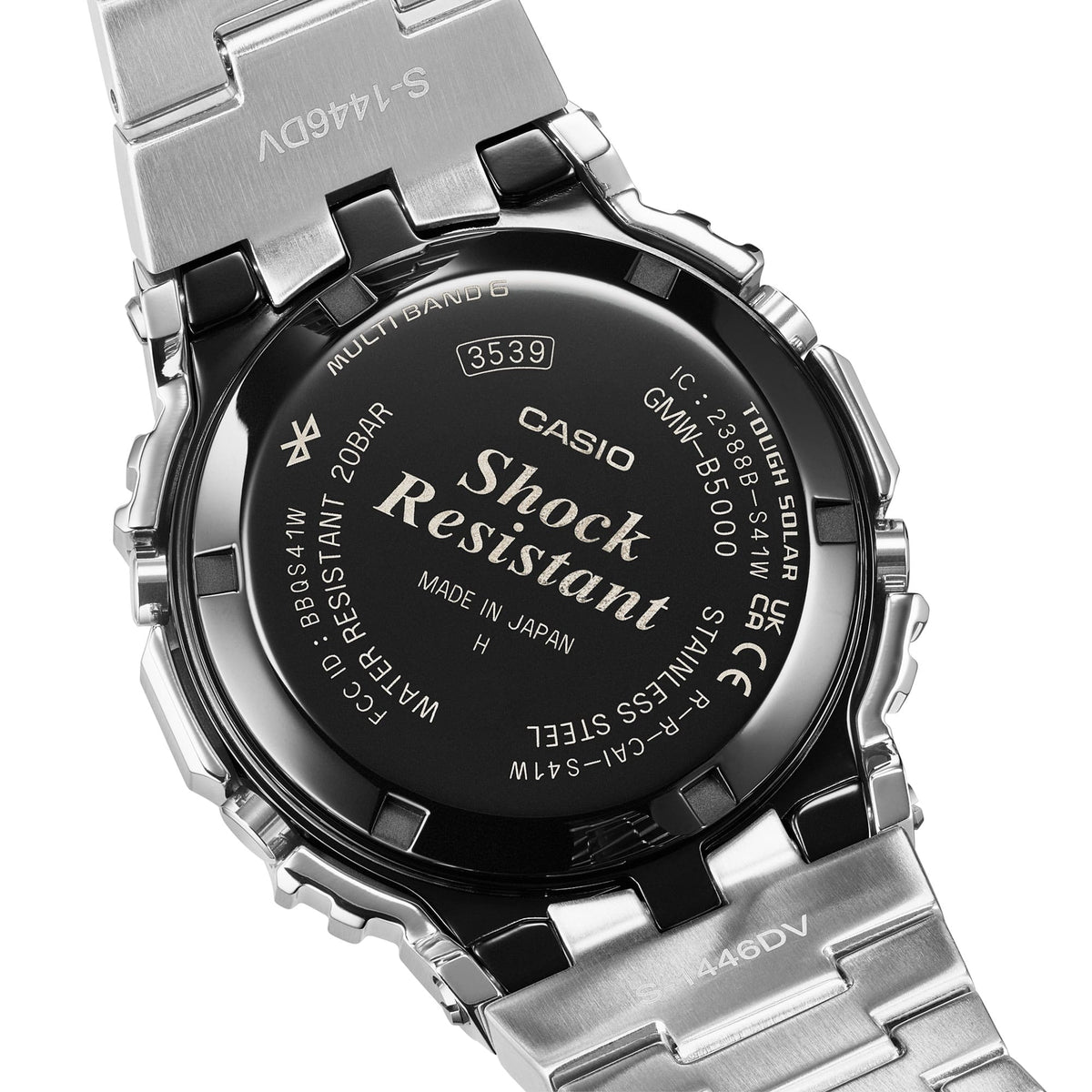

Screw-lock case back

The airtight, heavy-duty screw-lock case back replicates the first model’s. The slanted surfaces are mirror-finished, and DLC (diamond-like carbon) treatment is applied overall for enhanced wear resistance.

A fusion of strength and beauty

Bezel case

After sculpting the form through repeated forging, cutting and polishing, artisans apply mirror polishing and hairline finishing to the surfaces in pursuit of flawless beauty. The case back surface is finely machined to remove any unevenness and assure an accurate fit with the cushioning parts.

Solid feel and superior wearing comfort

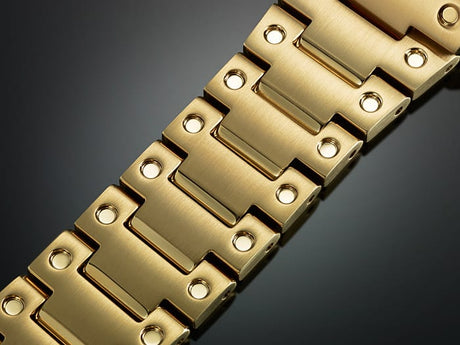

Metal band

The design of the first model’s resin band is reproduced by applying dimple-processing to the stainless-steel band pieces. Each piece is alternately pressed and polished in an unstinting effort to assure beautiful finishing that extends to the bottoms of the dimples.

Extending attentive workmanship to unseen parts

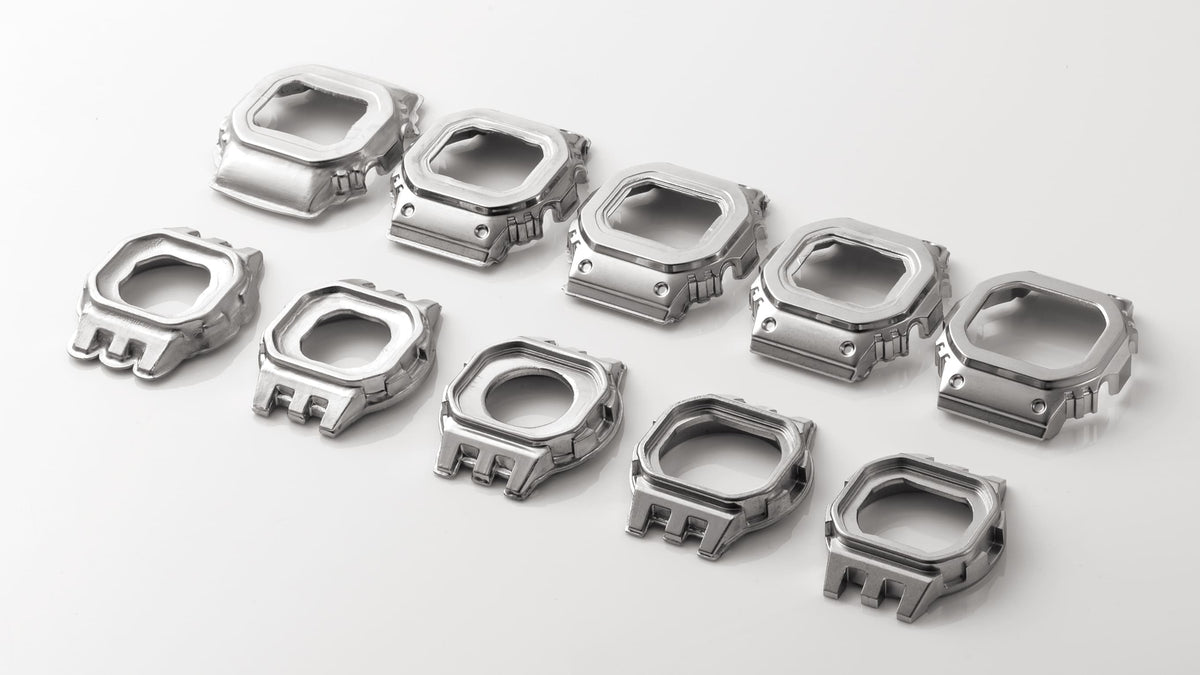

Inner case

After a process involving 10 or more forging and cutting steps, a complex form with integrated lugs and complicated shapes comprising various fitted and cushioning parts takes shape. Precision parts facilitating smooth, accurate assembly are produced.

Maintaining G-SHOCK’s origins without change

Original square design

The design of the first G-SHOCK model has been maintained continuously from the origin. Casio’s efforts in pursuit of universal usability have encompassed the structure with its undivided attention to shock resistance, the large LCD offering excellent visibility and the minimalist form that eschews any interference with wearing ease and comfort.

The airtight, heavy-duty screw-lock case back replicates the first model’s. The slanted surfaces are mirror-finished, and DLC (diamond-like carbon) treatment is applied overall for enhanced wear resistance.

The heart of a multifunction watch

LSI layout

The mounting position of the standard time radio wave antenna is calculated to ensure stable radio reception sensitivity inside a full-metal case. In this and other ways, the highly precise LSI design has solved the problems associated with a metal exterior and multi-functionality.

Breakthroughs in functional innovation

Dedicated design module

We have leveraged our proprietary high-density mounting, miniaturisation and power-saving technologies to install multiple functions without increasing the watch’s size. This innovative functional evolution has included such achievements as simultaneous installation of Bluetooth® communications and radio-controlled, solar-powered timekeeping.
