G-SHOCK

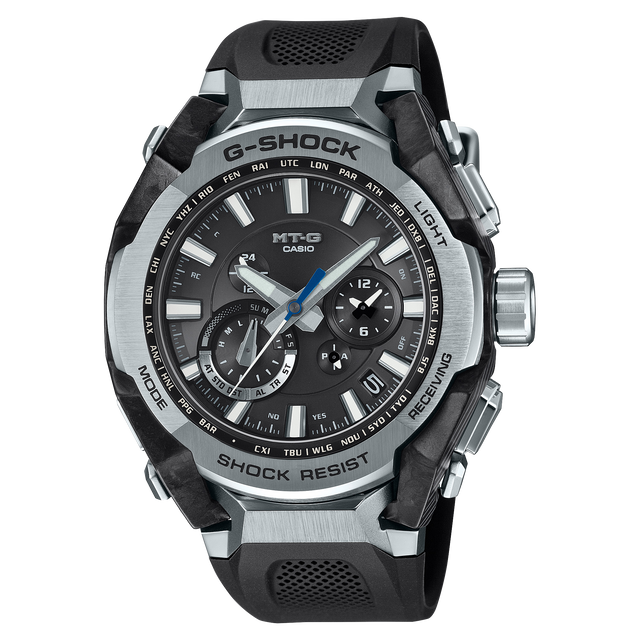

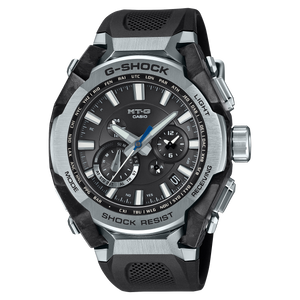

MTGB4000-1A

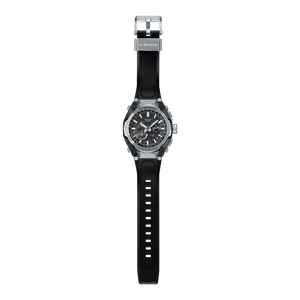

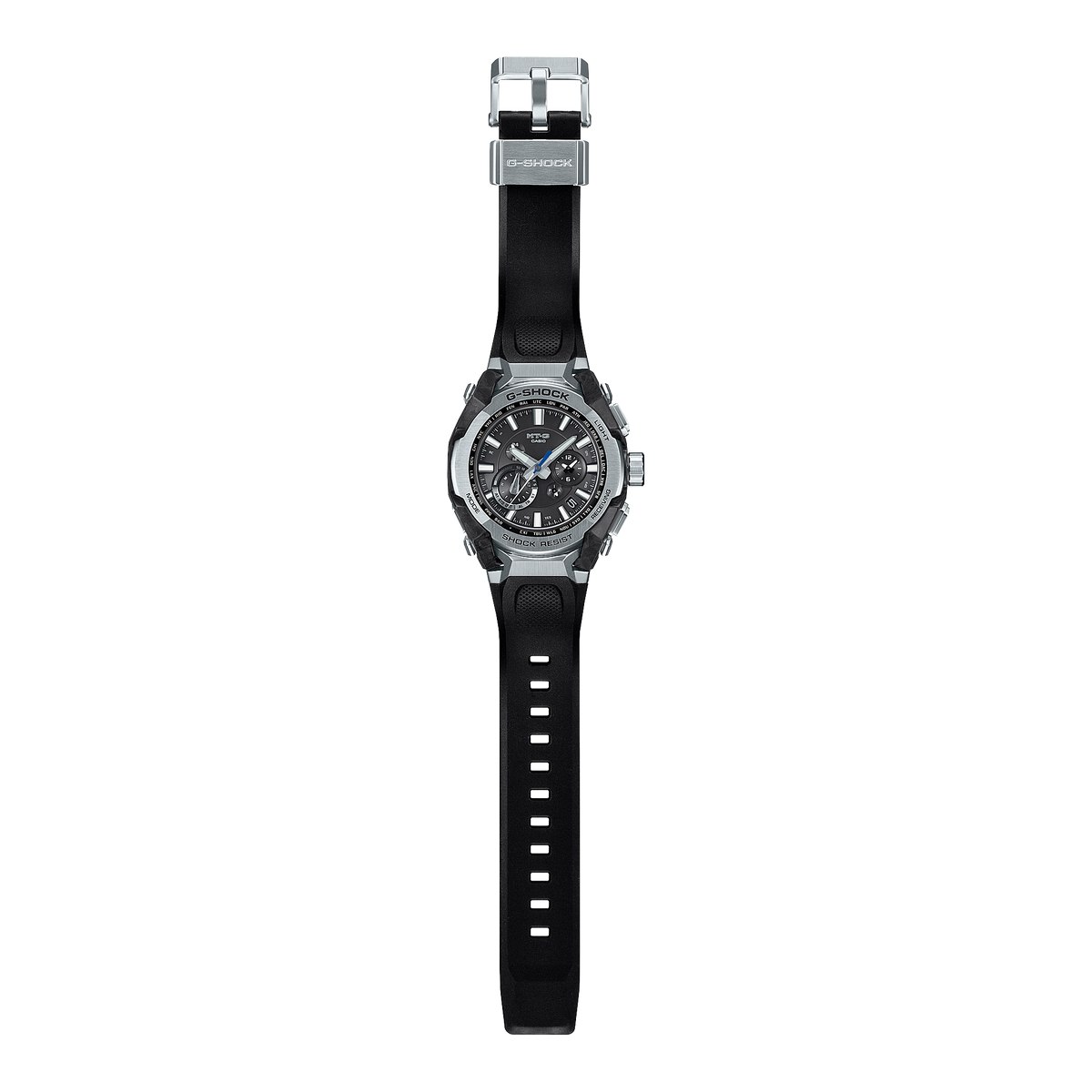

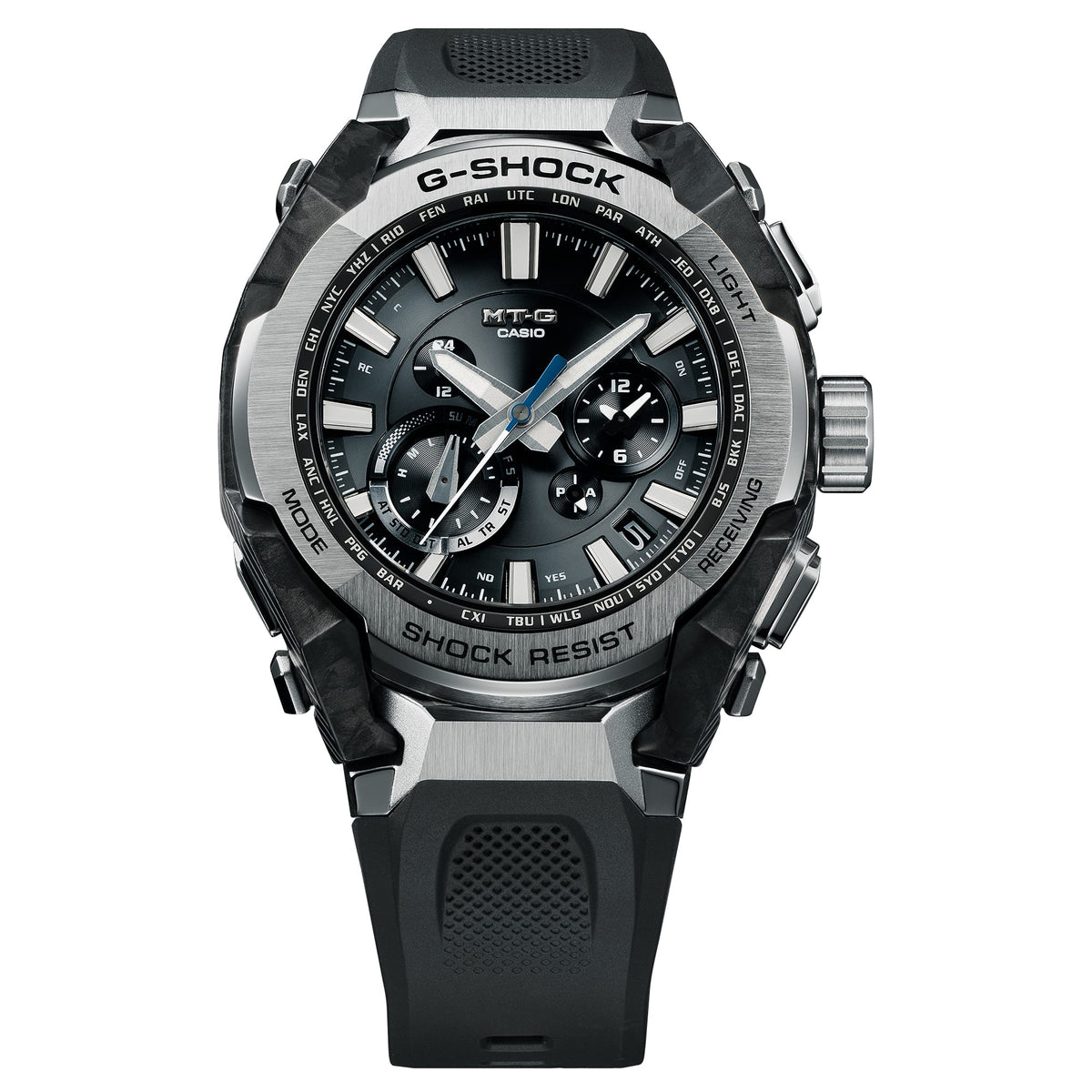

Name: MTGB4000-1A
Brand: G-SHOCK
SKU: MTGB4000-1A
Price: 2199.00 AUD
Availability: OutOfStock

$2,199.00

Size Chart

Discover innovative form and structural beauty — MT-G timepieces that combine metal materials with the resin used in the first G-SHOCK models.

The MTG-B4000 features an updated Dual Core Guard structure developed with the aid of artificial intelligence and an all-new frame design that combines carbon fibre and stainless steel. This unprecedented exterior achieves a new harmony of strength and beauty, pushing the frontiers of design.

This timepiece is a seamless collaboration between AI capabilities and human developers, creatively integrating materials, structure, and design into an organic whole of functional beauty. Base designs created by human designers were analysed and simulated by AI to generate an optimised 3D prototype, which was then further refined by the human hand to achieve a unique form that organically synthesises functionality and beauty.

The intricate, dimensional form of the frame is cut out from a base material of laminated carbon and glass fibre sheets, creating a beautifully layered pattern. The stainless-steel components of the bezel are polished with separate hairline and mirror finishes for a sophisticated textural look.

The watch employs the Triple G Resist structure to withstand shock, centrifugal forces, and vibration. The case is also protected by the intricate dimensional form of the case back, which is created using metal injection moulding (MIM), a method of metal processing in which fine metal powder is injected into moulds.

The meticulous attention paid to every detail is apparent down to the sapphire crystal, which delivers high transparency, and the delicately crafted dial achieved with fine processing technology from Yamagata Casio.

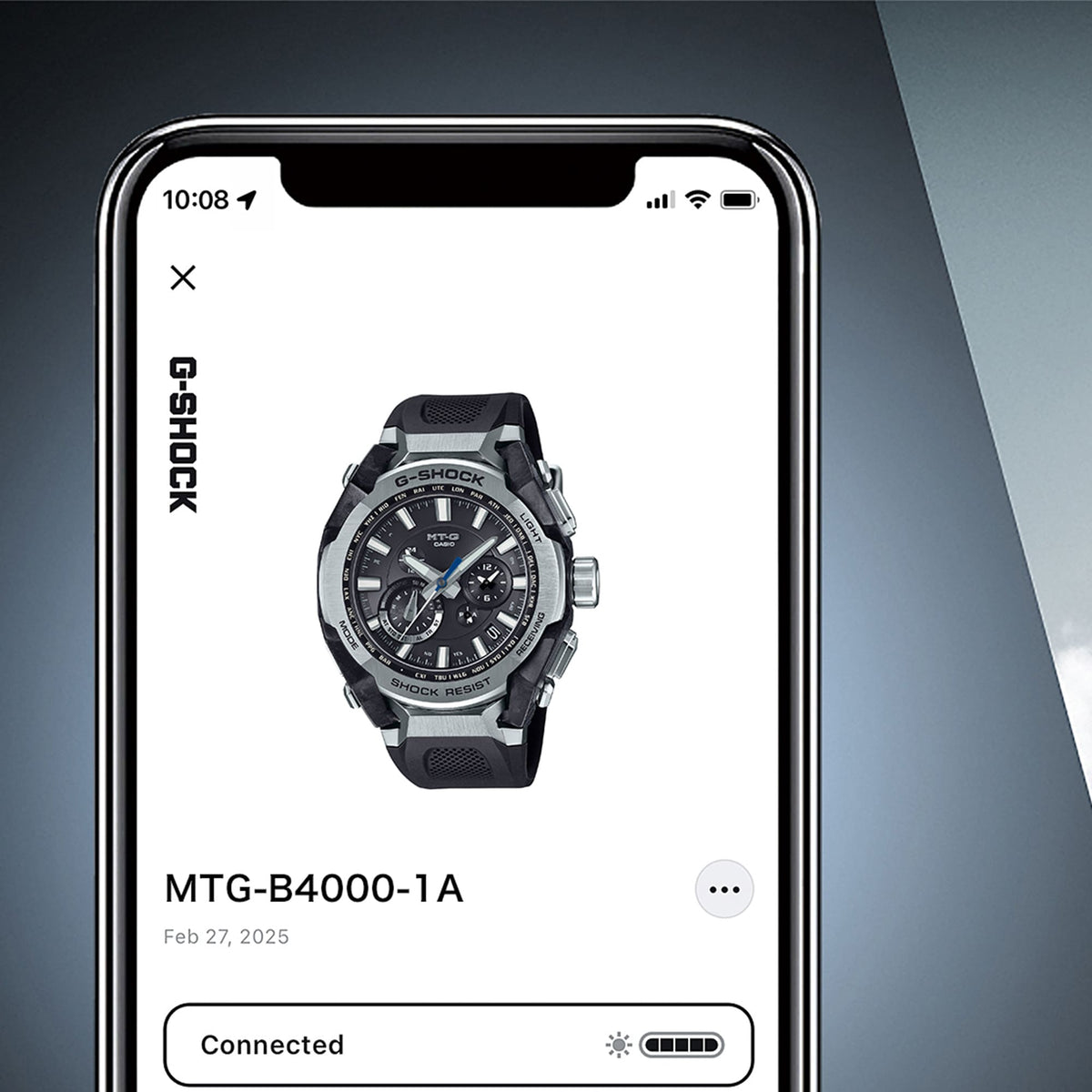

This innovative, tough new style delivers full-on functionality, as well. Download the CASIO WATCHES app to pair with your smartphone via Bluetooth®. With Multiband 6, Tough Solar charging system, and high-brightness LED light, these timepieces keep you at peak performance, whatever your adventures may bring.

MT-G

Basic Information

Band

Resin Band
Case and bezel material

Carbon / Stainless steel
Case size (L × W × H)

56.6 × 45.3 × 14.4 mm
Construction

TRIPLE G RESIST (Shock resistant, Centrifugal force resistant, Vibration resistant), Carbon Core Guard structure
Power supply and battery life

Tough Solar (Solar powered)
Time adjustment

Radio-controlled Watch; Multi band 6, Bluetooth: Connects to a smartphone and automatically adjusts the time
Water resistance

200-metre water resistance
Weight

112 g

Exterior

Compatible band size

145 to 215 mm
Crown

Screw Lock Crown
Glass

Sapphire crystal with anti-reflective coating
Other

Neobrite

Smartphone Link / App Connectivity Features

App connectivity feature

Auto time adjustment, Easy watch setting, Approximately 300 world time cities, Time & place, Watch status display, Self check, Phone finder
Apps

CASIO WATCHES
Smartphone link feature

Mobile link (Wireless linking using Bluetooth®)

Features

Accuracy

Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
Alarm / hourly time signal

Daily alarm
Battery display alert

Battery level indicator
Calendar

Full auto-calendar (to year 2099)
Energy saving feature

Power Saving (hands stop to save power when the watch is left in the dark)
Hand home position correction feature

The auto hand home position correction

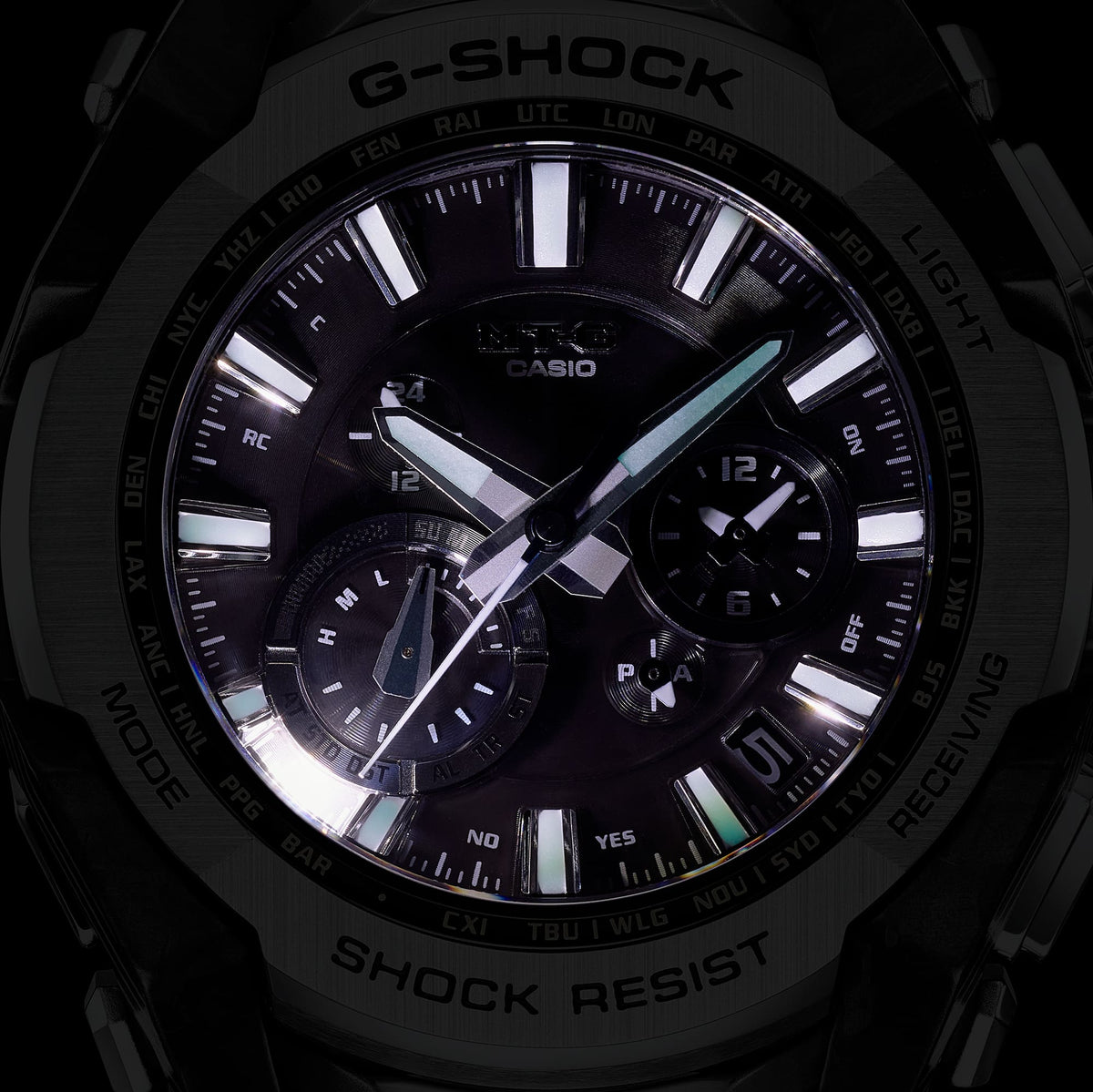

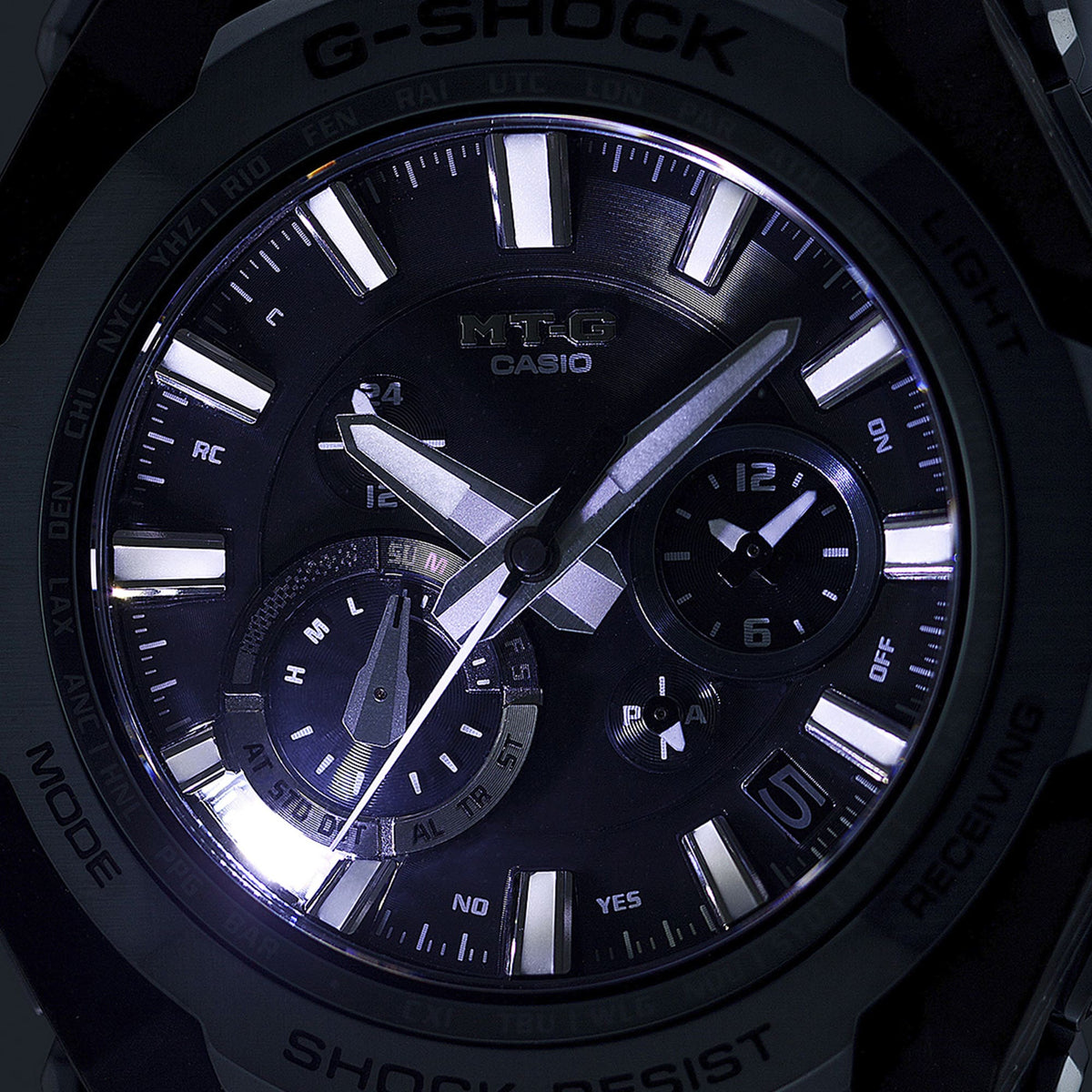

Light

LED light (Super Illuminator)
Afterglow
Other features

Regular timekeeping:
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second), 3 dials (dual time hour and minute, dual time 24-hour, day)
Day indicator
Date display
Run time

Approx. battery operating time:
5 months on rechargeable battery (operation period with normal use without exposure to light after charge)
18 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Stopwatch

1-second stopwatch
Measuring capacity: 23:59'59
Time adjustment details

Time calibration signal reception
Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
*5 times a day for the Chinese calibration signal
Manual receive
The latest signal reception results
Timer

Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 minute to 24 hours (1-second increments)
World time

World time
38 time zones (27 cities + coordinated universal time), Home city time swapping, auto summer time (DST) switching
* Subject to updates by connection between the watch and a phone.
5 World time 39 time zones (39 cities + Coordinated Universal Time), daylight saving on/off, Home city/World time city swapping, auto summer time (DST) switching

User Manual – Module 5743

G-SHOCK MT-G MTG-B4000

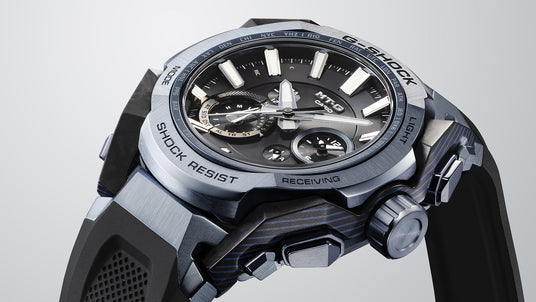

G-SHOCK-MTGB4000B-1A2-Watches-CASIO Australia

Co-creating with AI to break new ground in toughness-driven design: Original new structure incorporating a frame made with a combination of materials

The structure and exterior design were developed collaboratively by human designers and AI, creating a bold new frame that integrates carbon fiber and metal materials. Paired with the Dual Core Guard structure, this innovation further elevates MT-G toughness and cutting-edge design. A novel approach integrates band connection parts directly into the frame, effectively reducing shock transmission to the case through a hybrid carbon-metal structure. To further enhance impact resistance, a screwless design securely attaches the metal lug components to the carbon frame, ensuring exceptional durability and resilience.

AI-assisted development process
AI was used to analyze and simulate base designs created by human designers. Drawing on the extensive data on shock-resistant structures in the G-SHOCK world, optimized 3D prototypes were generated to meet specified structural strength and material property requirements. These prototypes were further refined via repeated manual adjustments, achieving unique forms that seamlessly combine functionality and beauty.

Multi-layered carbon frame design for a side view exuding strength and beauty

The frame is cut out from a base material consisting of laminated carbon and glass fiber sheets to create its intricate, dimensional form. The beautiful layered patterns created by the pair of different materials are incorporated as a design feature. Configured to interlock with the bezel, side buttons, and case back, it offers a beautiful side view accentuating the combination of materials.

* The exact pattern on the bezel will vary by watch due to the characteristics of the molding technique, which mixes carbon fibers, resin, and other materials.

Meticulous metal finishing for a solid luster

Sallaz polishing is applied to certain mirror-polished surfaces to create smooth, beautiful, distortion-free finishes. Separate hairline and mirror finishes applied to individual components accentuate the beauty of the metal with looks of luxe refinement.

Metal injection molding (MIM), a method of metal processing in which fine metal powder is injected into molds, is used to create the intricate dimensional case back.
Newly developed blue-gray IP is applied to the MTG-B4000B.

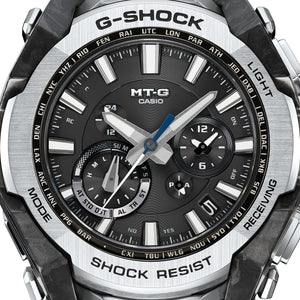

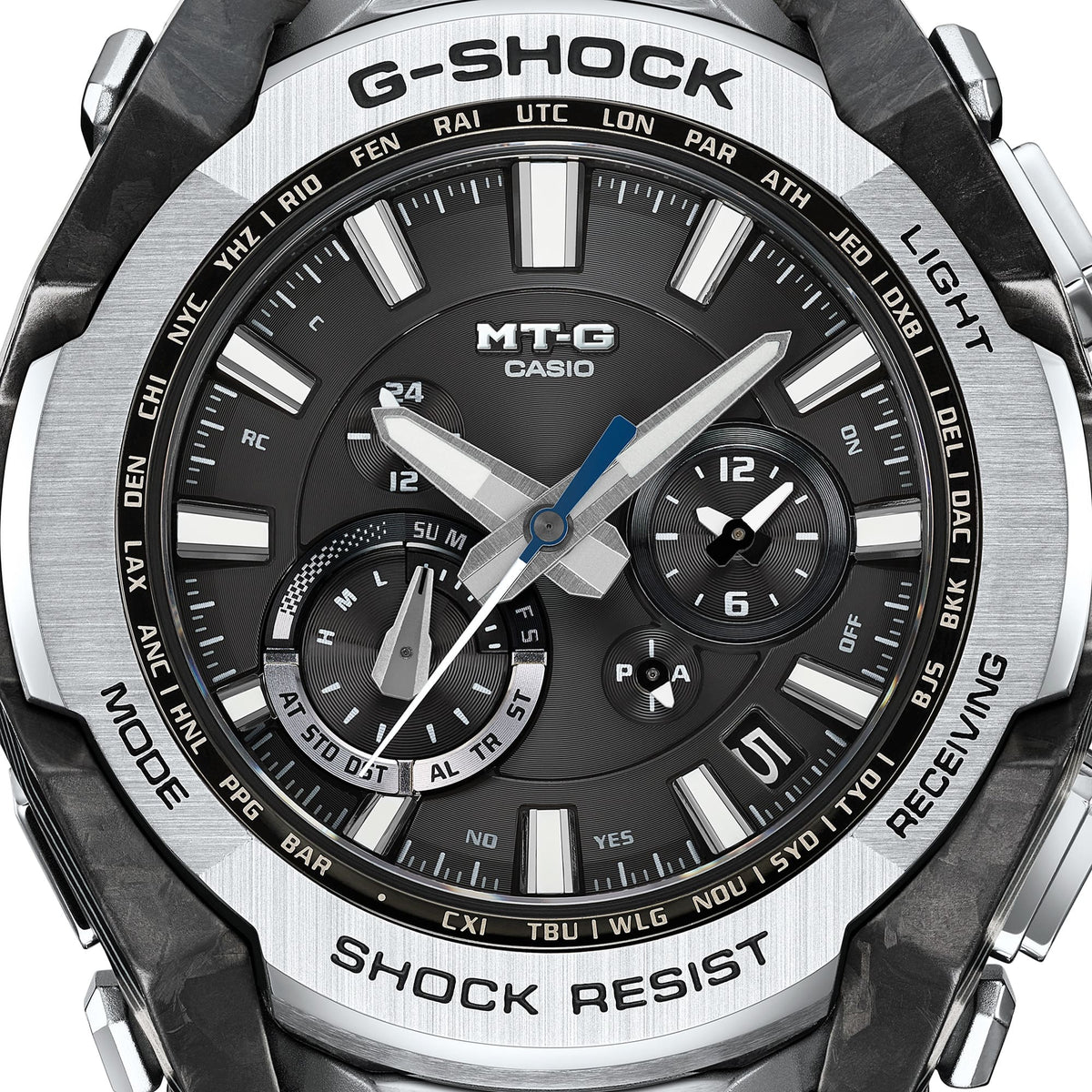

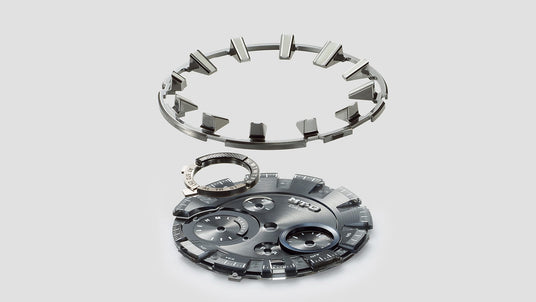

Multi-layer dial projecting sophisticated refinement

The design incorporating three-dimensional arrangements of components, including a slanted dial ring set off with large, boldly raised indexes, gives the watch an impressive sense of depth. Phosphorescent finish and metallic vapor deposition are applied to the sharp, multifaceted forms of the indexes. Achieved with the fine processing technologies of Yamagata Casio, the intricate forms of the components accent the watch with sophisticated textural appeal down to the finest details.

TRIPLE G RESIST: Passion for delivering further strength

The updated MT-G Dual Core Guard structure protects the carbon fiber-reinforced resin inner case with metal components, delivering high strength and weight reduction at the same time. The innovative construction meets stringent G-SHOCK standards, providing protection from shock, centrifugal force, and vibration with Triple G Resist technology.
