G-SHOCK

MTGB4000D-1A

Name: MTGB4000D-1A
Brand: G-SHOCK
SKU: MTGB4000D-1A
Price: 2499.00 AUD
Availability: InStock

$2,499.00

Size Chart

Discover innovative form and structural beauty — MT-G timepieces that combine metal materials with the resin used in the first G-SHOCK models.

The MTG-B4000D features an updated Dual Core Guard structure with a frame design integrating carbon fibre and stainless steel, which was developed with the aid of artificial intelligence trained with big data on impact resistance.

A seamless collaboration between AI capabilities and human developers, this timepiece creatively integrates materials, structure, and design into an organic whole of functional beauty. Base designs created by human designers were analysed and simulated by AI and then further refined by the human hand to render a unique form that organically synthesises functionality and beauty.

The intricate, dimensional form of the frame is cut out from a base material of laminated carbon and glass fibre sheets, creating a beautifully layered pattern. The stainless-steel components of the bezel, featuring a dual-layer design of inner and outer bezels, are polished with separate hairline and mirror finishes for a sophisticated textural look.

The band also features a layered composite construction that integrates stainless steel and carbon fibre-reinforced resin. Combining the ruggedness of metal and lightness of resin, the band has a solid, substantial feel, while ensuring a comfortable fit.

The watch employs the Triple G Resist structure to withstand shock, centrifugal force, and vibration. The case is also protected by the dimensional form of the case back, which is created using metal injection moulding (MIM), a method of processing metal in which fine metal powder is injected into moulds.

Meticulous attention paid to every detail is apparent down to the sapphire crystal, which delivers high transparency. The dial incorporates delicate components featuring intricate designs achieved with fine processing technology from Yamagata Casio.

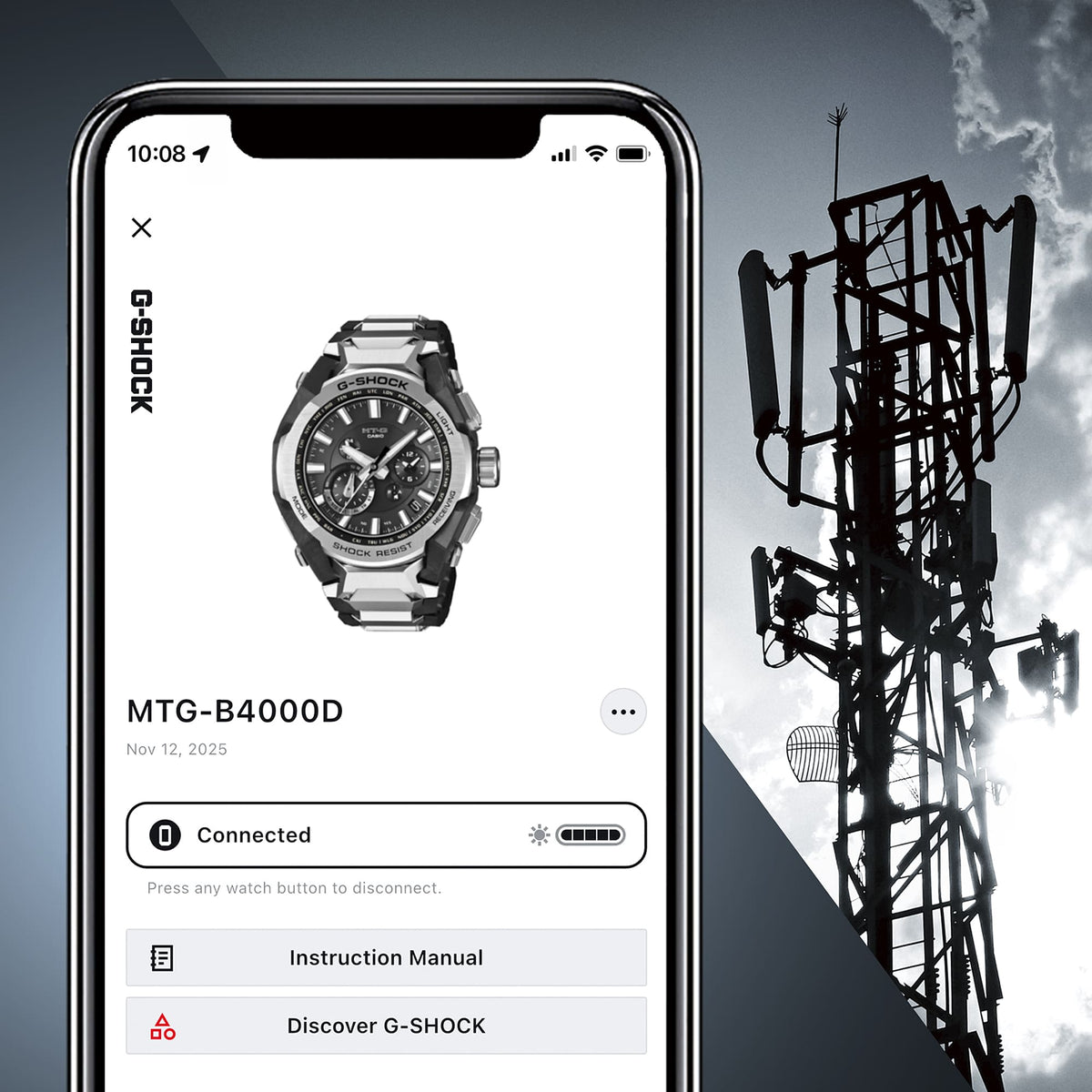

This innovative, tough style delivers full-on functionality, as well. Download the CASIO WATCHES app to pair with your smartphone via Bluetooth®. With Multiband 6, Tough Solar charging system, and high-brightness LED light, these timepieces keep you at peak performance, whatever your adventures may bring.

2 year warranty

MT-G

Basic Information

Band

Layered Composite Band, One-touch 3-fold Clasp
Case and bezel material

Carbon / Stainless steel
Case size (L × W × H)

56.6 × 45.3 × 14.4 mm
Construction

TRIPLE G RESIST (Shock resistant, Centrifugal force resistant, Vibration resistant), Carbon Core Guard structure
Power supply and battery life

Tough Solar (Solar powered)
Time adjustment

Radio-controlled Watch; Multi band 6, Bluetooth: Connects to a smartphone and automatically adjusts the time
Water resistance

200-metre water resistance
Weight

178 g

Exterior

Compatible band size

150 to 205 mm
Crown

Screw Lock Crown
Glass

Sapphire crystal with anti-reflective coating
Other

Neobrite

Smartphone Link / App Connectivity Features

App connectivity feature

Auto time adjustment, Easy watch setting, Approximately 300 world time cities, Time & place, Watch status display, Self check, Phone finder
Apps

CASIO WATCHES
Smartphone link feature

Mobile link (Wireless linking using Bluetooth®)

Features

Accuracy

Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
Alarm / hourly time signal

Daily alarm
Battery display alert

Battery level indicator
Calendar

Full auto-calendar (to year 2099)
Energy saving feature

Power Saving (hands stop to save power when the watch is left in the dark)
Hand home position correction feature

The auto hand home position correction
Light

LED light (Super Illuminator)
Afterglow
Other features

Regular timekeeping:
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second), 3 dials (dual time hour and minute, dual time 24-hour, day)
Day indicator
Date display
Run time

Approx. battery operating time:
5 months on rechargeable battery (operation period with normal use without exposure to light after charge)
18 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Stopwatch

1-second stopwatch
Measuring capacity: 23:59'59
Time adjustment details

Time calibration signal reception
Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
*5 times a day for the Chinese calibration signal
Manual receive
The latest signal reception results
Timer

Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 minute to 24 hours (1-second increments)
World time

World time
38 time zones (27 cities + coordinated universal time), Home city time swapping, auto summer time (DST) switching
* Subject to updates by connection between the watch and a phone.
5 World time 39 time zones (39 cities + Coordinated Universal Time), daylight saving on/off, Home city/World time city swapping, auto summer time (DST) switching

User Manual – Module 5743

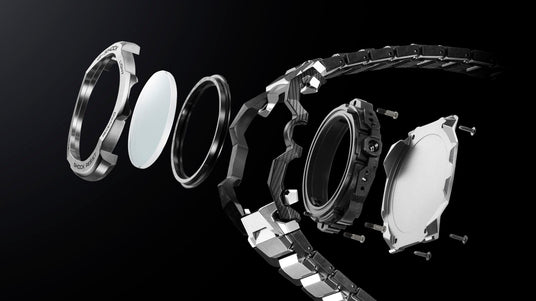

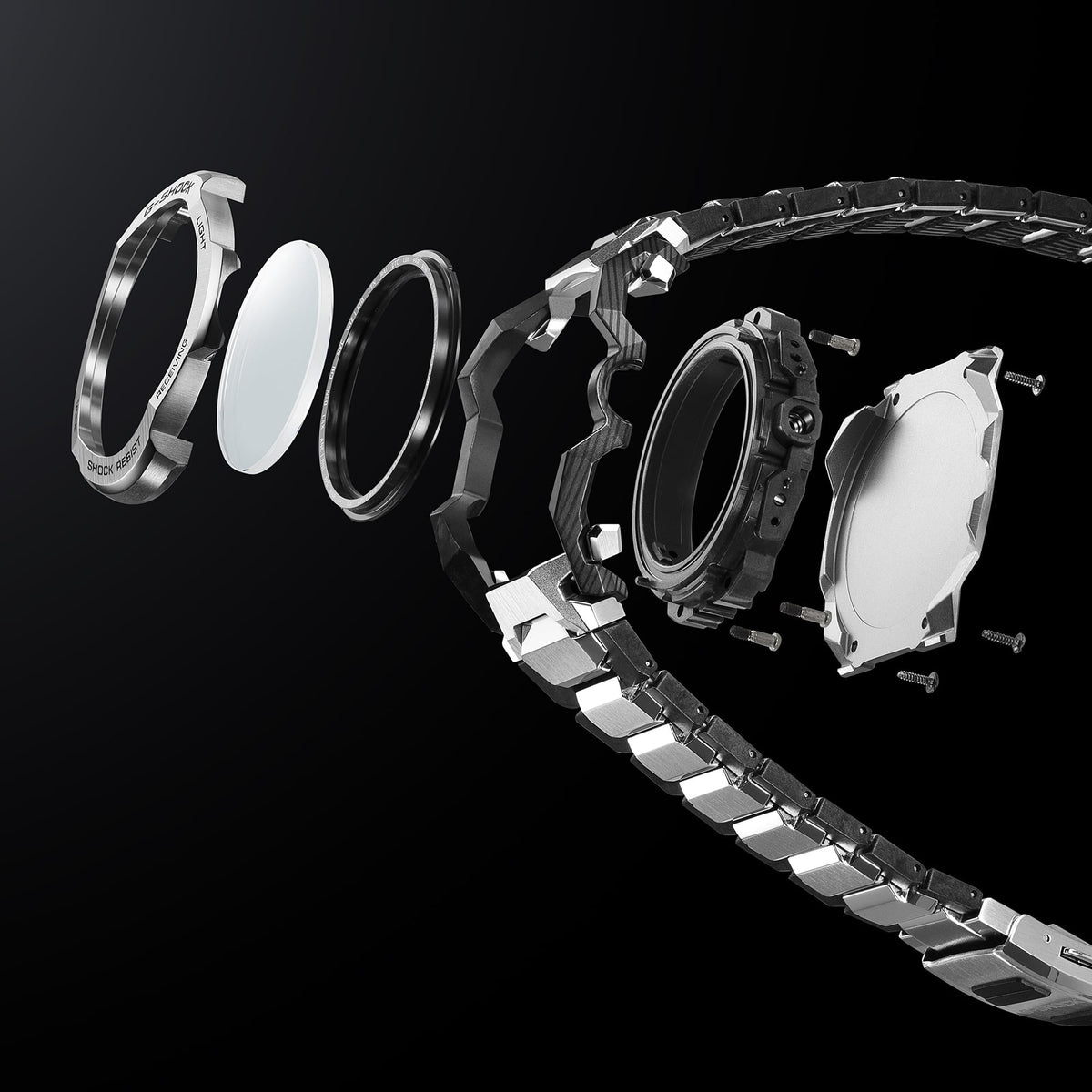

All-new structure employing a frame made with combined materials

The structure and exterior design were developed collaboratively by human designers and AI, creating a bold new frame that integrates different materials. Paired with the Dual Core Guard structure, this innovation further elevates the MT-G toughness and cutting-edge design.
This novel approach integrates band connection parts directly into the frame, effectively reducing shock transmission to the case using a hybrid carbon and stainless-steel structure. To further enhance impact resistance, the screwless design securely attaches the stainless-steel lug components to the carbon frame, ensuring exceptional durability and resilience.

AI-assisted development process
AI was used to analyze and simulate base designs created by human designers. Drawing on the extensive data on shock-resistant structures in the G-SHOCK world, optimized 3D prototypes were generated to meet specified structural strength and material property requirements. These prototypes were further refined via repeated manual adjustments, achieving unique forms that seamlessly combine functionality and beauty.

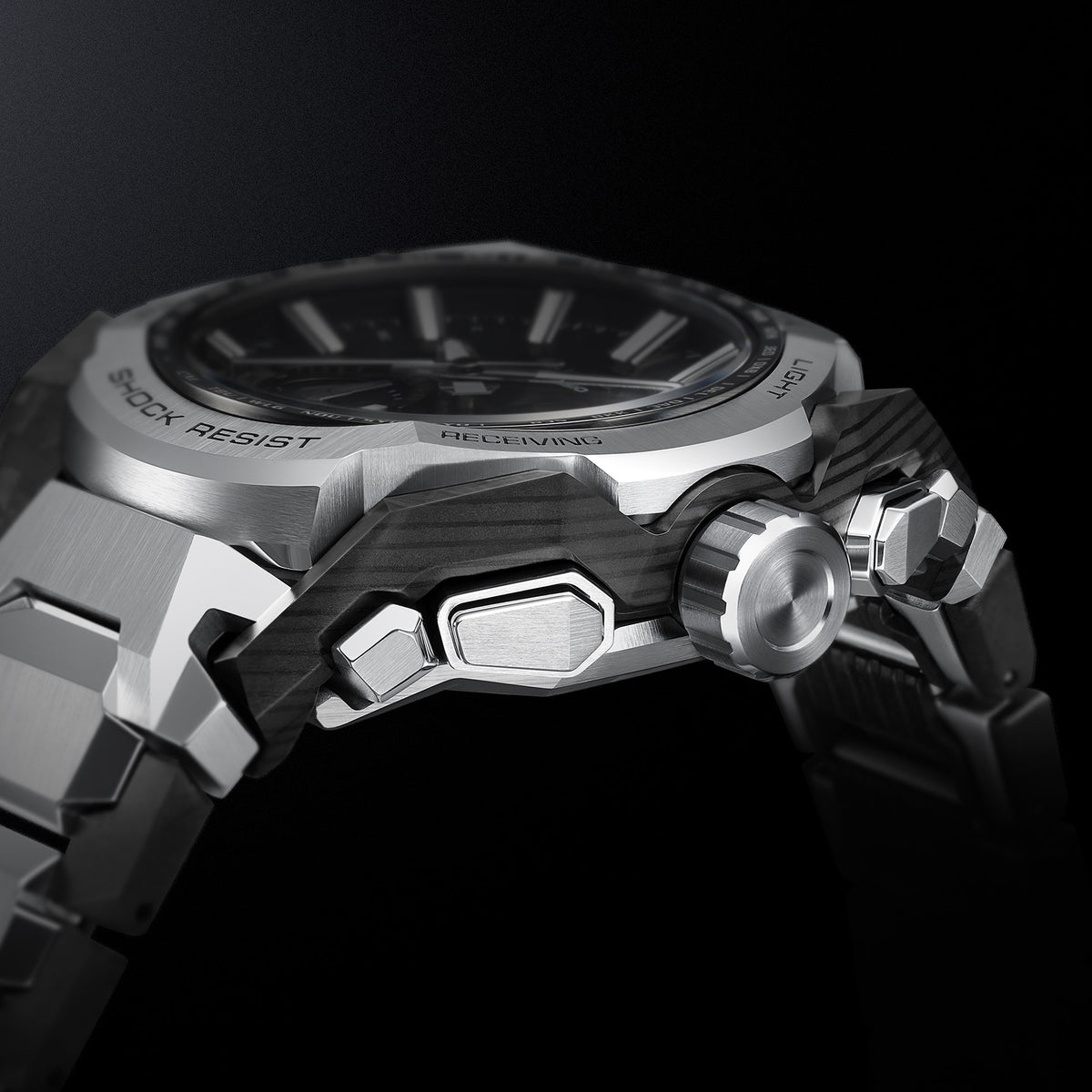

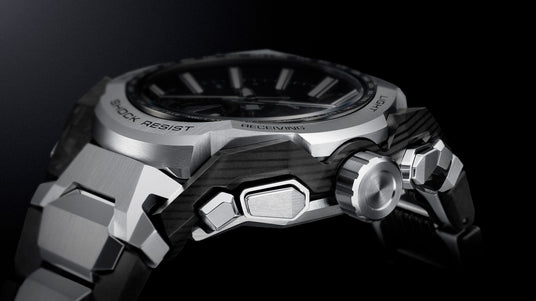

Multi-layered carbon frame: Layers of toughness interwoven with beauty

The frame is cut out from a base material consisting of laminated carbon and glass fiber sheets to create its innovative dimensional form. The beautiful layered patterns created by the cut across the different materials feature prominently when the watch is viewed from the side. A molded combination of carbon fiber and resin is employed for the top surface, revealing a distinctive fibrous pattern that gives a vivid sense of the materials’ toughness.
In addition, the frame is configured to interlock with the bezel, side buttons, and case back, creating a beautiful exterior that highlights the combination of carbon fiber, resin, and stainless-steel materials.

* The exact patterns that appear on surfaces will vary with each timepiece due to the characteristics of the molding technique, which mixes carbon fibers, resin, and other materials.

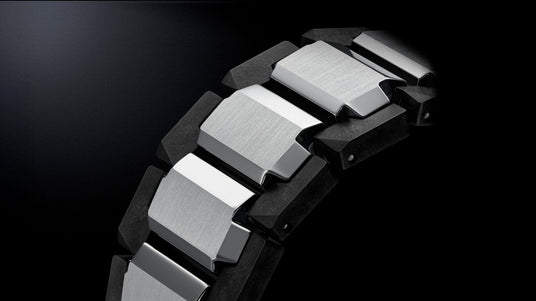

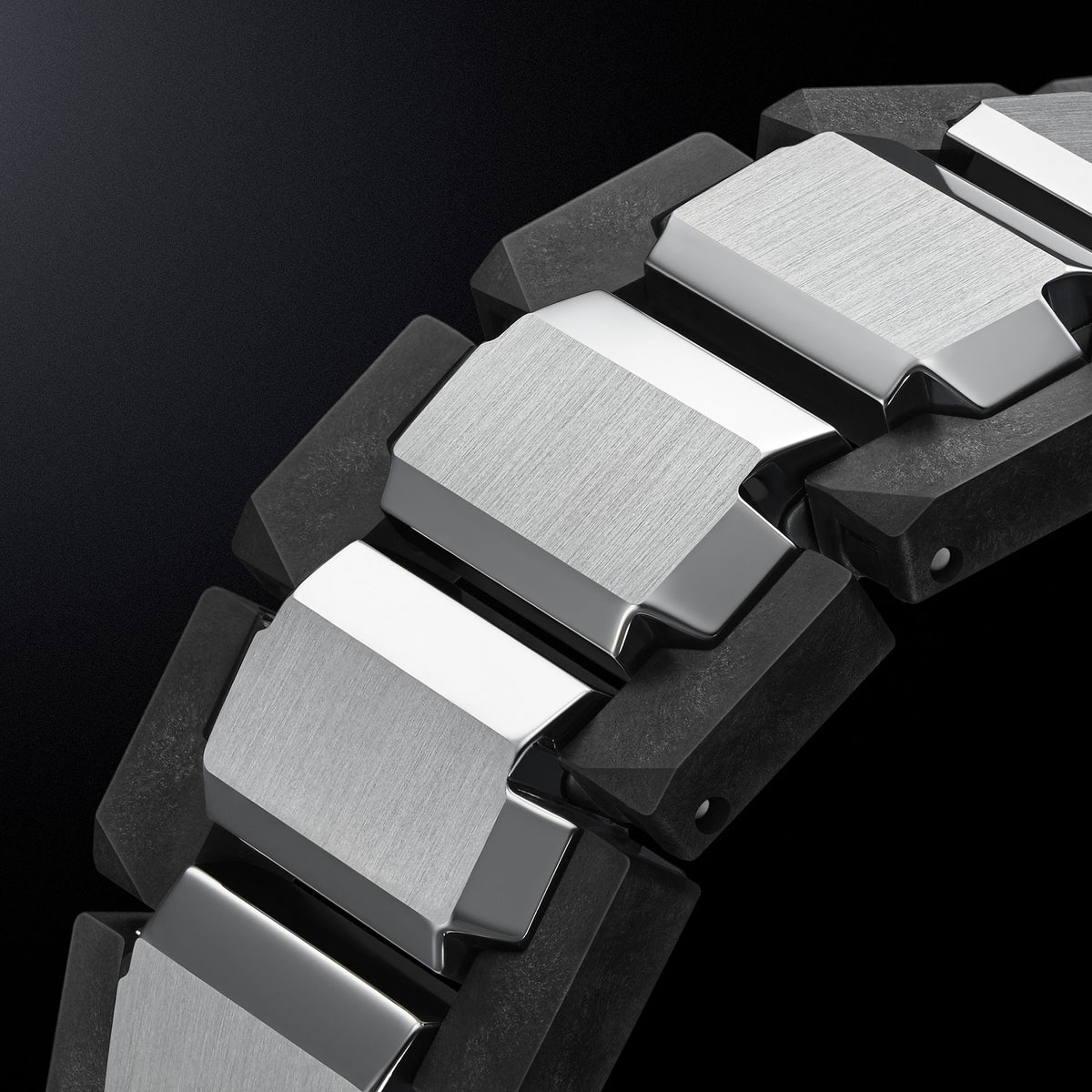

Layered-composite band: Creating a new form of structural beauty

Newly developed for the MT-G line, the layered-composite band is constructed with stainless-steel and carbon fiber-reinforced resin components. The surfaces of the raised center links are accentuated with separately applied finishes. Together with the powerful side view set off by the distinctive carbon pattern, they create a seamless, integrated form extending from the frame and lugs to the band. This creates unique MT-G styling that captures all the beauty of the contrasting materials combined, throughout the entire watch design. The characteristic hardness of the metal creates a look of tough solidity. At the same time, materials with low thermal conductivity are employed for the underside of the band which comes in contact with the skin, ensuring comfortable wearability for everyday use.

* The exact patterns that appear on surfaces will vary with each timepiece due to the characteristics of the molding technique, which mixes carbon fibers, resin, and other materials.

Meticulous finishes for a look of solidity and radiance

Multiple unique finishes are applied to individual parts to set off the texture of the stainless steel most impressively. In particular, separate hairline and mirror finishes are applied to the bezel, case, and band — components with sharp-edged surface structures. This accentuates the structural beauty created by their complex forms, as well as the gleam of the metal. The watch exterior exudes a powerful and beautiful sense of presence viewed from any angle. Also, Sallaz polishing is employed for certain sections of the mirror finishes to create beautiful, exceptionally smooth surfaces free of distortion.

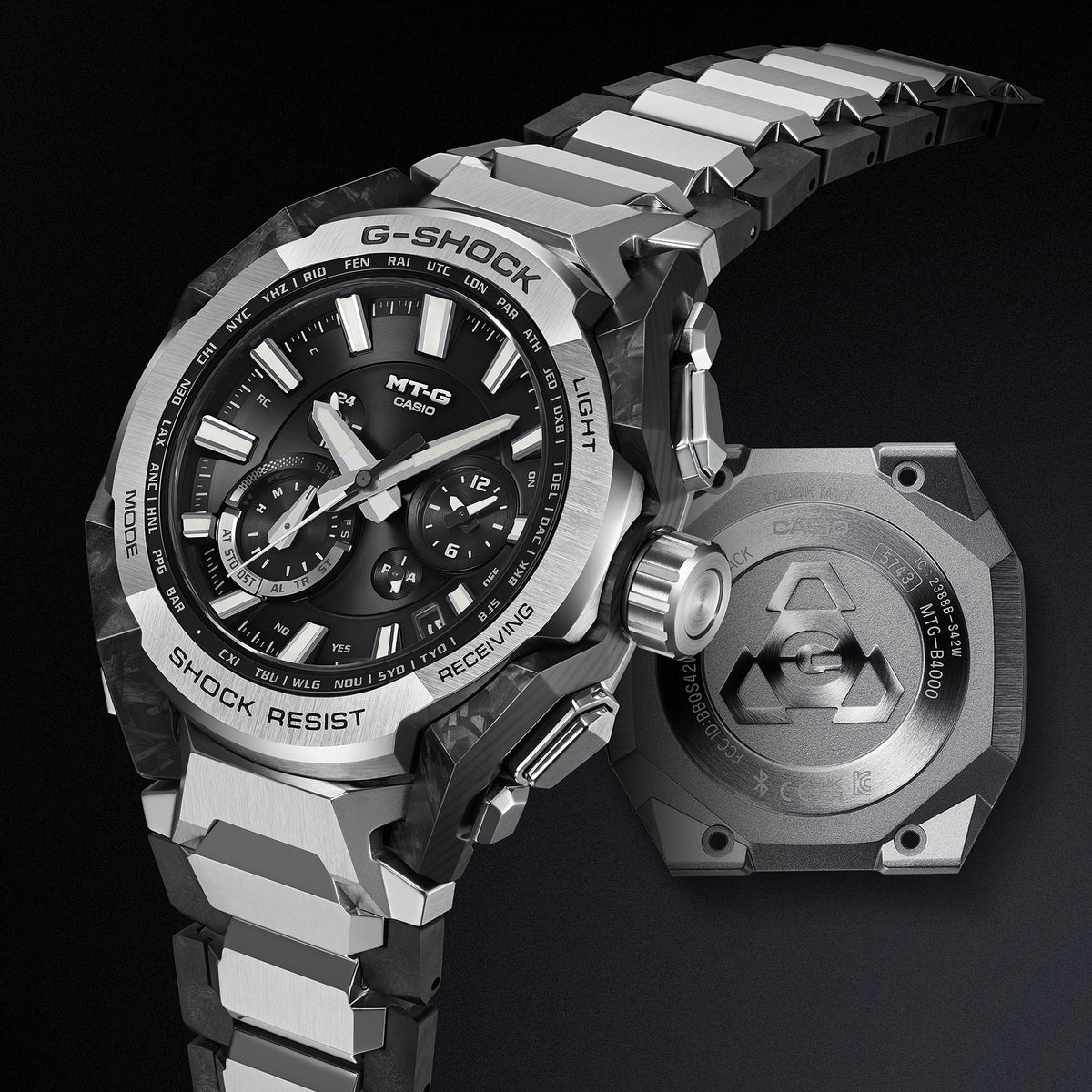

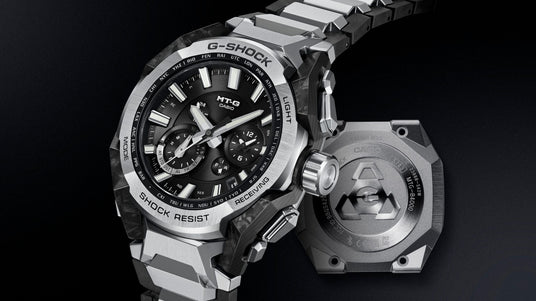

Metal injection molding (MIM), a method of metal processing in which fine metal powder is injected into molds, is used to create the intricate dimensional case back. Laser processing is used to create a delicately textured matte finish, resembling the texture of Asian pear skin, on recessed portions to offset the TRIPLE G RESIST logo.

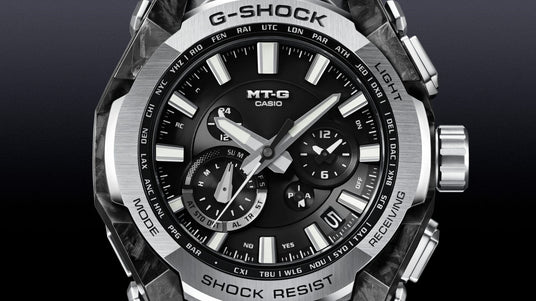

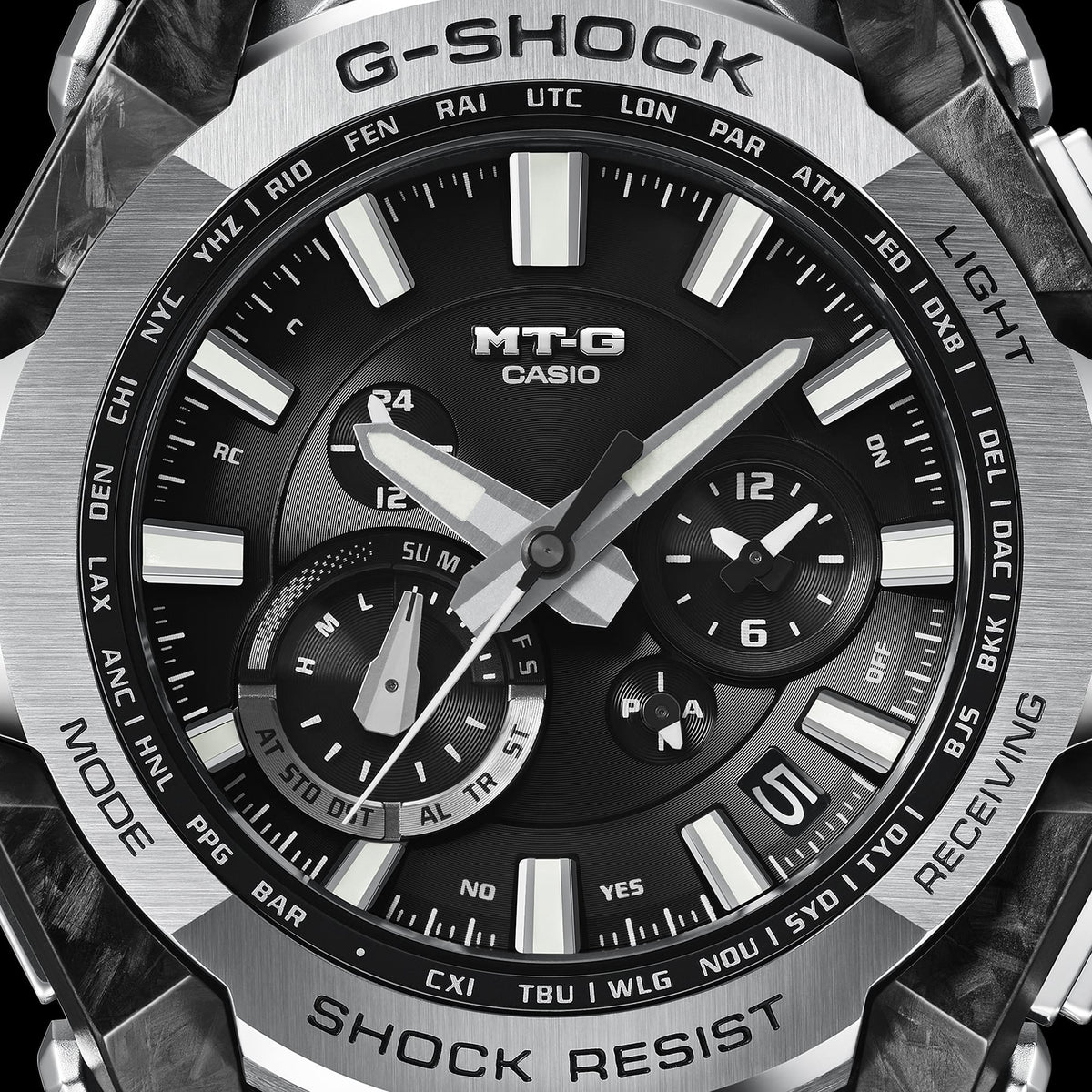

Dial design with sharpness and depth exuding intricacy

The design incorporating three-dimensional arrangements of components, including a slanted dial ring set off with large, boldly raised indexes, gives the dial an impressive sense of depth. Phosphorescent finish and metallic vapor deposition are applied to the sharp, multifaceted forms of the indexes. Achieved with the fine processing technologies of Yamagata Casio, the intricate forms of the components accent the watch with sophisticated textural appeal down to the finest details.

Triple G Resist

The updated MT-G Dual Core Guard structure protects the carbon fiber-reinforced resin inner case with metal components, delivering high strength and weight reduction at the same time. The innovative construction meets stringent G-SHOCK standards, providing protection from shock, centrifugal force, and vibration with Triple G Resist technology.

* Image is included for illustrative purposes.
